Jera Line is a leading professional manufacturer specializing in outdoor cable infrastructure products, dedicated to delivering robust, reliable solutions for telecommunication networks worldwide. This video walks you through the complete, step-by-step assembly process of our PA-07×320 Figure 8 Cable Anchor Clamp. Also known as an aluminum anchoring clamp, the PA-07×320 Tensioning Clamp is engineered to tension and anchor fiber optic cables with steel messengers for outdoor FTTX network deployments.
For more detailed information about our products and solutions, feel free to reach out to us through the following channels:
Key Product’s features:
-
Self-adjustable wedge
-
Easy installation, tools free
-
Aluminum alloy and stainless steel material, durable
-
No cable shell damage and slipping during installation
-
Excellent mechanical strength
-
Perfect environmental stability
-
Fair price

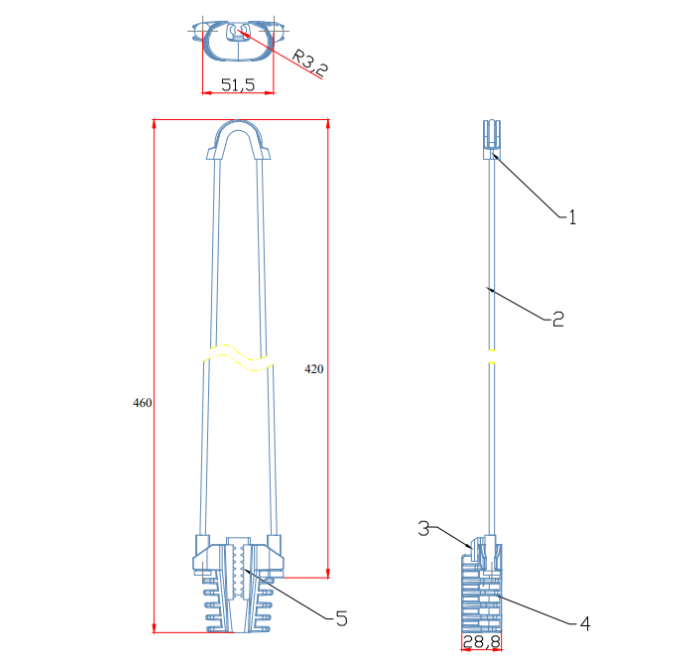

Technical specification
|
Product code
|
Messenger diameter size,mm
|
Bail length,mm
|
Material
|
MBL,KN
|
|
PA-07-320
|
4-7
|
520/320
|
Stainless steel, aluminum, zink
|
7
|
Application
Suitable for outdoor use, designed for installation on telecommunication supports, as well as between buildings and industrial structures, for securing and protecting optical cables.
Test
Ultimate tensile strength test
Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.
This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.
Jera proceed this test on below products
Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.
We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.
Our internal laboratory is capable to proceed such a series of standard related type tests.
Welcome to contact us for further information.
