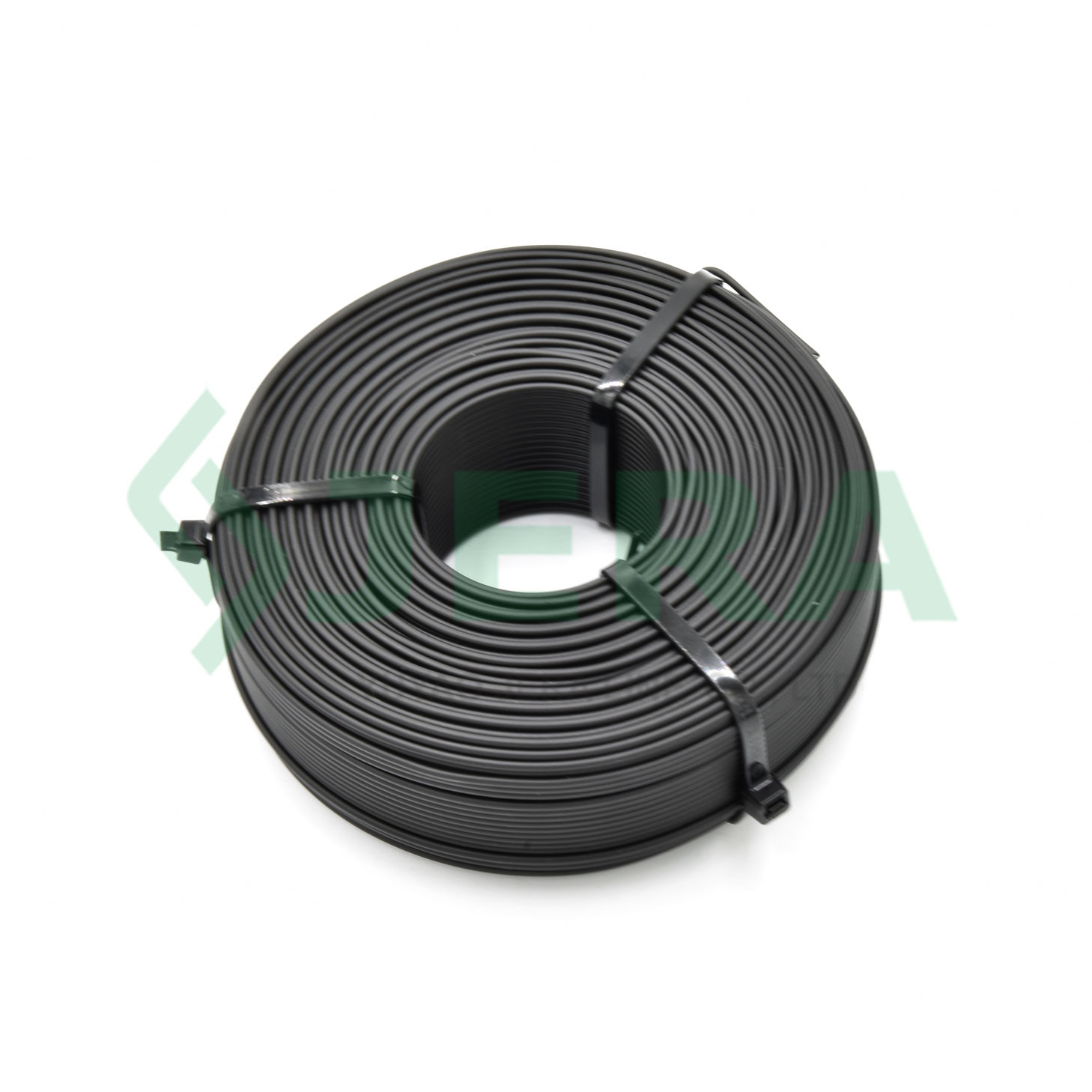

black tie wire coil GS-1.2-GSteel-HDPE(BC)-2.0 mm

Black Tie Wire Coil GS-1.2-G Steel-HDPE(BC)-2.0 mm Also known as Sandbaggy Rebar Tie Wire and Bobina Recubierta Steel Wire. It is a fast, cost-effective solution for fiber optic network deployment. Featuring specially engineered, lightweight installation tools, fittings and a unique structure, it can be directly wrapped onto phase conductors up to 50 kV.

Features

Construction：Plastic-coated wire
Wire diamete：1.23±0.10mm
Sheath material：HDPE with UV filter
Sheath diameterz：2.00±0.20mm
Coil length：130m

DESCRIPTION Specification Test

REVIEW

APPLICATION

Black Annealed Wire act as a fastening and support element for dielectric fiber optic cable installations. It is spirally applied around the cables and features excellent strength and malleability, providing versatility, ease of use, and reliable performance for fiber optic (F.O.) cable deployments.

Utilized for telecommunications across energy infrastructure
Extend customer reach for FTTx applications particularly in rural and remote areas
Integration into smart grid networks
Extend fiber networks for 5G roll out

Technical specification

Specification	Property
Plastic-coated wire	Construction
Galvanized steel	Wire material
1.23±0.10mm	Wire diameter
HDPE with UV filter	Sheath material
2.00±0.20mm	Sheath diameter
130m	Coil length
1.5±5%kg	Weight
Elastic modulus: 3×10 N/mm (min),tensile force >60 N,minimum strength: 450 N	Tensile test (5mm/min)
2500 N/100 mm, no damage	Compression test
Ø20mm,50 times,90°,100 N, no damage	Flexure test
Pressure: 10 N, 25 times, no sheath wear	Abrasion test
Preload: 2 kg, 0.5 m drop with 4 kg impact, 0.5 m, no damage	Longitudinal impact test
Preload: 2 kg; 4 kg impact at 0.5 m drop height, 0.5 m (no damage)	Corrosion test
