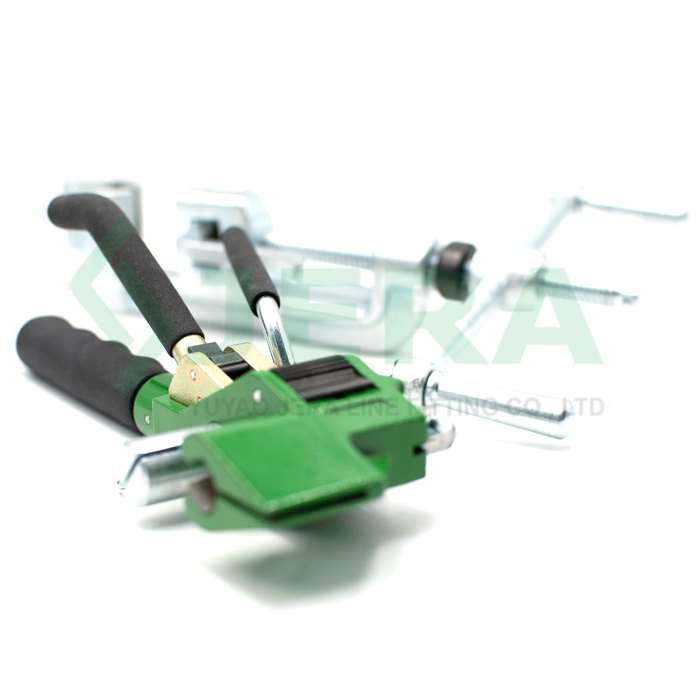

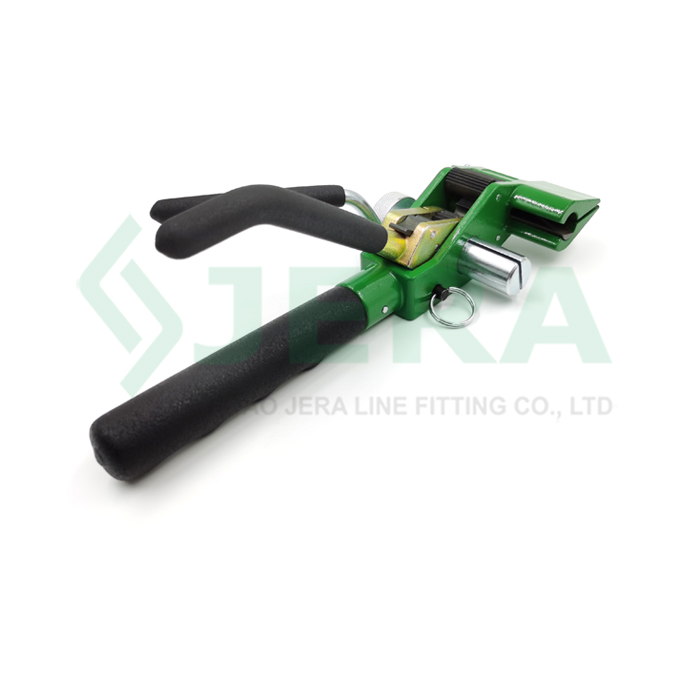

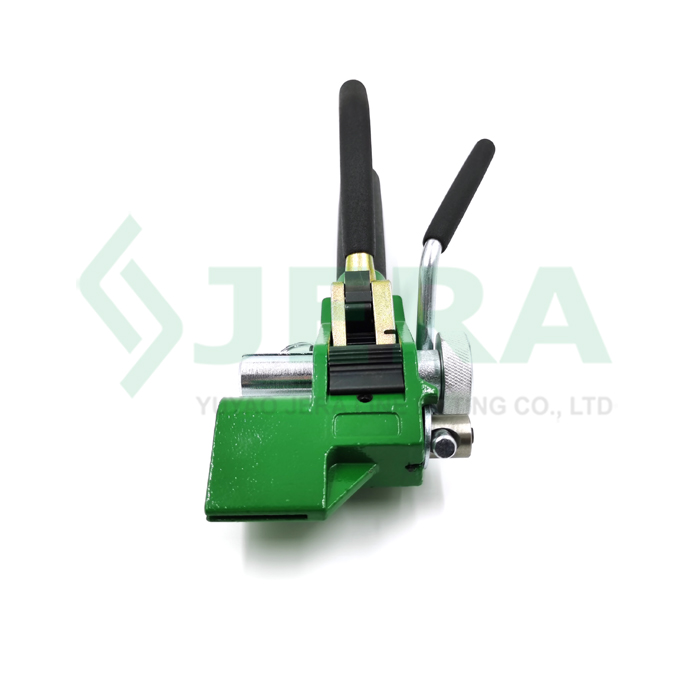

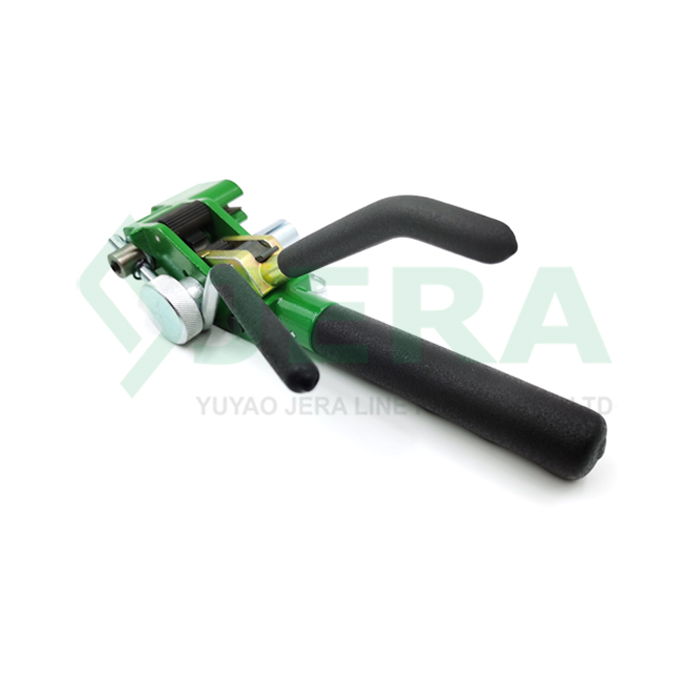

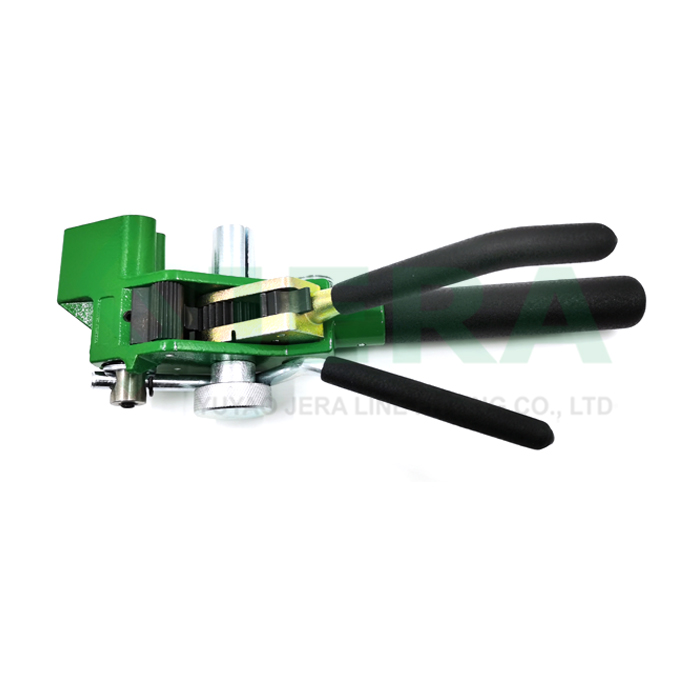

Banding Tool Mbt-004

Ratchet banding tool MBT-004 is developed for tension the Stainless steel strapping band with Buckles and mounting the fittings on wooden, concrete or metal poles.The tool is equipped with special blade for easily cutting the stainless steel strapping band.
Banding Tool Mbt-004
Features



    • Reliable ratchet binding system
    • User-friendly shanks and easy carry design
    • Made of high strength metals,long duration of usage
    • Excellent environmental protection
    • Competitive price
Contact Us
DESCRIPTION Specification Test
REVIEW

Application

Jera line produces Stainless steel strapping bands, Buckles, which can used together with this Banding tool to attach pole fittings, anchor clamps, suspension fittings and other fittings or accessories together on dead-end and intermediate routes, of main or end used electrical connections.



Technical specification

Ratchet banding tool MBT-004 is developed for tension the Stainless steel strapping band with Buckles and mounting the fittings on wooden, concrete or metal poles.The tool is equipped with special blade for easily cutting the stainless steel strapping band.

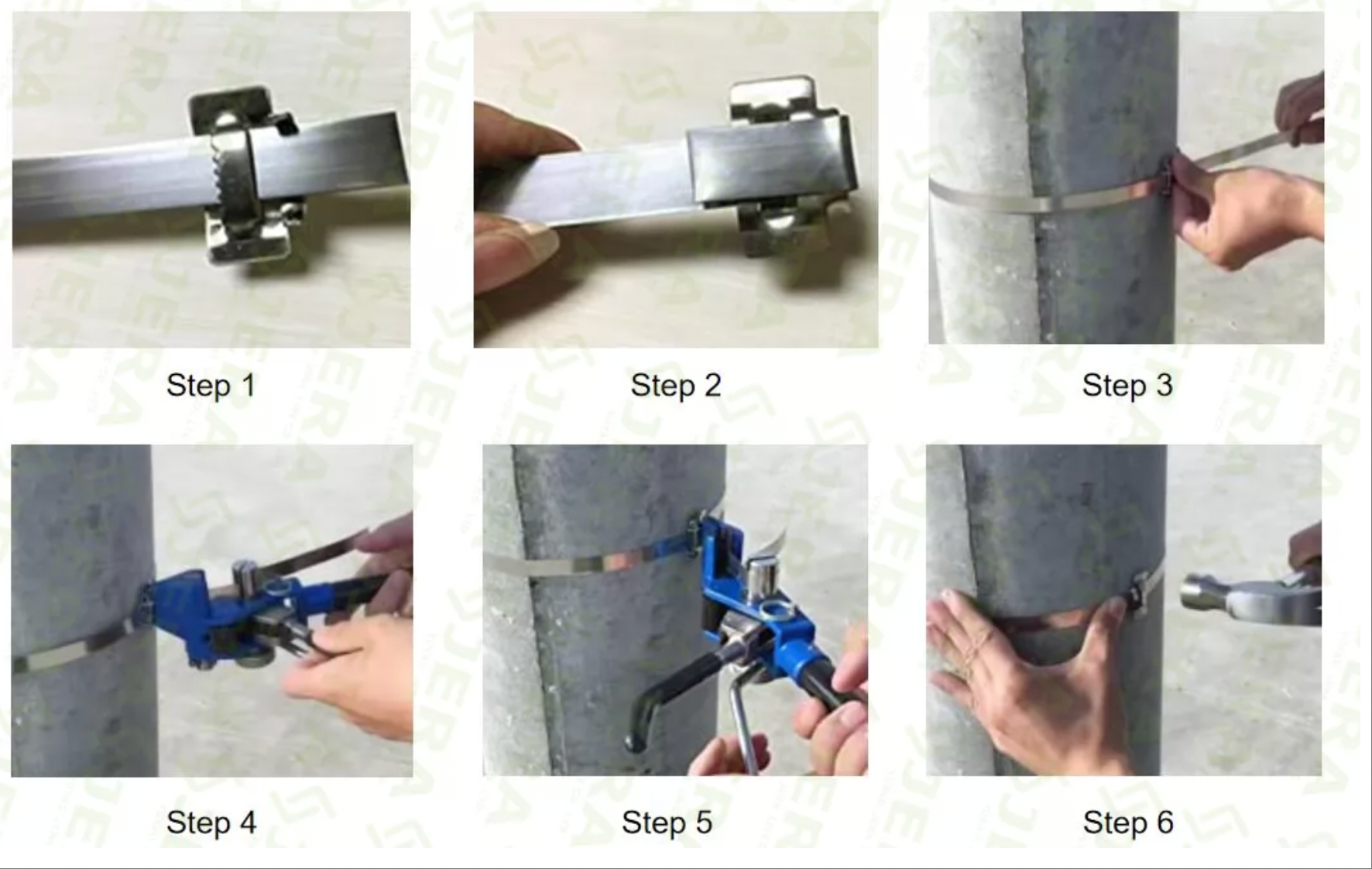

Ratchet tool MBT-004 is an easy way of binding stainless steel strapping band around different rack/pole elements. It keeps the tension tight on the strapping bands as they fasten the components together. The operations of cutting, tension, banding can be done with spin tension handle, spring-loaded gripper and cutter. To complete the installation there is only one tool needed. The package of this tool is Carton box. The pallet packing method is available as well, check more details with our sales.

Code

Band width（mm）

Band thickness（mm）

Weight

Material

MBT-004

<25

<1.5

1.3KG

Galvanized steel & stainless steel

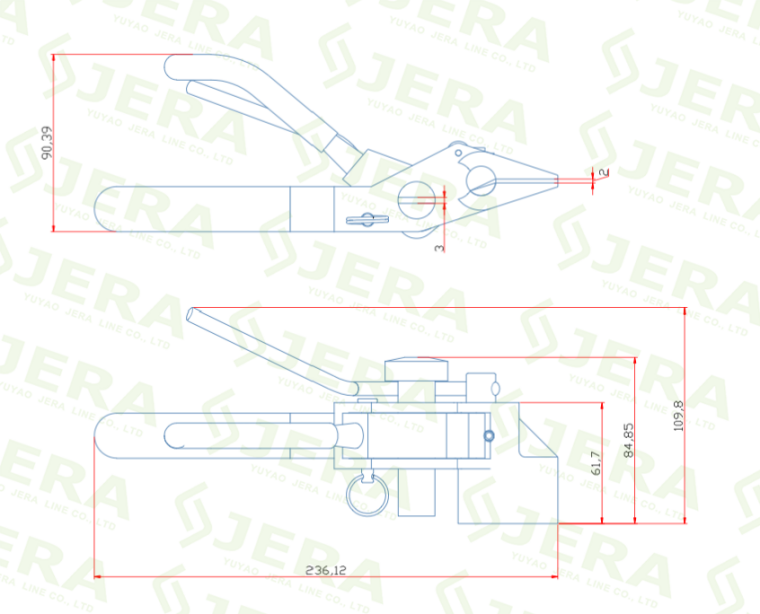

Drawing







Product Video
