ASU Fiber Optic Cable ASU, 12 fibers

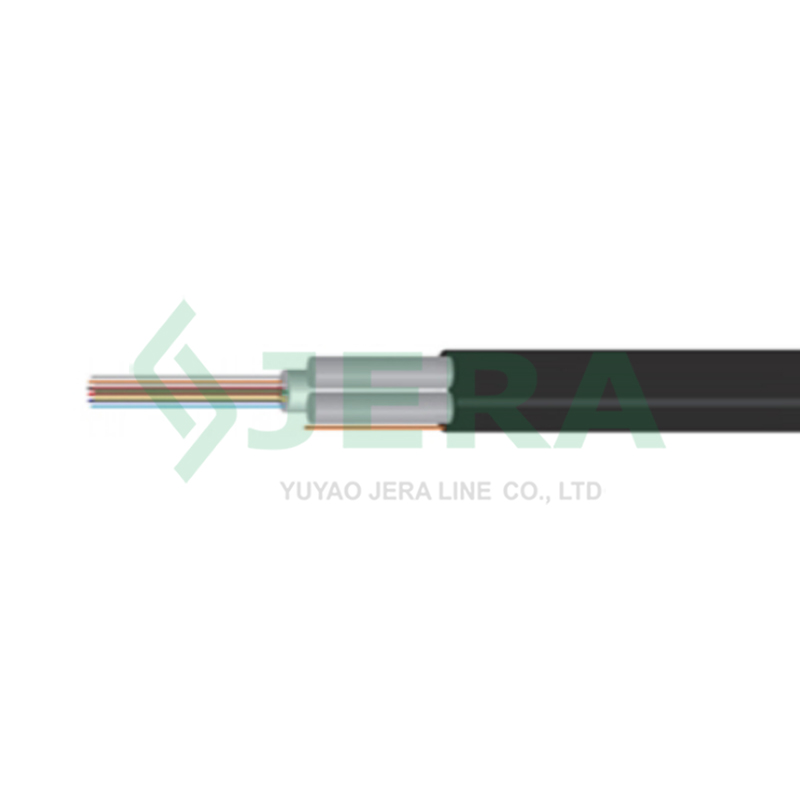

The ASU Fiber Optic Cable ASU, 12 fibers is a robust and efficient solution designed to meet high-performance telecommunication needs. This ASU fiber optic cable (GYFFY) is engineered with a lightweight yet durable construction, ideal for aerial installations. Featuring 12 fibers enclosed within its core, it ensures high bandwidth and reliable data transmission over long distances. The GYFFY FO cable ADSS (All-Dielectric Self-Supporting) design makes it suitable for outdoor environments without

Features

Application: Outdoor
Fiber quantity: 12 fiber
Dimensions: 6.6 mm
Reinforcement: FRP

DESCRIPTION Specification Test

REVIEW

Telecommunications : It serves as a backbone for internet and phone services, connecting central offices to distribution points.

Data Centers : Ideal for high-speed data transmission, this cable connects servers and switches within data centers.

Local Area Networks (LANs) : Used for networking in office buildings or campuses, enabling high-speed connectivity between devices.

Industrial Automation : Supports communication between machines and control systems in industrial settings.

Video Surveillance : Connects cameras to monitoring systems, ensuring high-quality video transmission over long distances.

Smart Buildings : Integrates various building systems like lighting, HVAC, and security for enhanced management and efficiency.

Broadcasting : Used in television and radio for transmitting high-definition video and audio signals.

Technical specification

The ASU Fiber Optic Cable ASU, 12 fibers complements the 6-fiber variant (ASU Fiber Optic Cable ASU, 6 fibers) while offering higher fiber count to accommodate larger data transfer requirements. With its weather-resistant properties, the GYFFY FO cable ADSS is ideal for both rural and urban deployments, providing stable performance in harsh environmental conditions.

ITEMS	DESCRIPTION
Fiber count	12F
The Color Code of The fibers	Blue,Orange,Green, Brown, Gray, natural,Red, Black,Yellow,Violet,Pink,Aqua
Loose Tube OD(mm):	2.1±0.1
Loose Tube Material：	PBT
Strength member	FRP-2.0mm
Sheath Thickness:	Non. 1.1mm
Sheath Material：	PE
OD of cable (mm)	6.6±0.3
Net weight ( kg/km)	42

Drawing

Test

Jera proceed this test on below products

-Fiber optic drop cables

Fire resistance tests is operated by vertical furnace according to IEC 60332-1, IEC 60332-3 standard. Test equipment was preformed automatically, which can avoid human mistakes to make sure the the authenticity and precision of the experiment.

We use following standards test on new products before launching, also for the daily quality control, in order to make sure ours customer could receive products which meet quality requirements.

Our internal laboratory is capable to proceed such a series of standard related type tests.
