What is the Aerial ADSS tension clamp, PA-3000 (8-12mm)?
The Aerial ADSS Tension Clamp PA-3000, also known as a wedge-type anchor clamp, is designed for securing ADSS (All-Dielectric Self-Supporting) optical fiber cables in overhead telecommunication line installations.
It is typically installed on intermediate poles to provide stable and reliable mechanical support for ADSS cable spans of up to 100 meters. The clamp is suitable for medium-span aerial fiber routes widely used in FTTH, FTTx, and backbone network construction.
The PA-3000 tension clamp adopts a self-adjusting wedge mechanism that firmly grips the cable without damaging its outer sheath, ensuring safe tensioning and long-term stability during aerial deployment.
The clamp is suitable for:
-
ADSS fiber optic cable aerial installation
-
FTTH / FTTx overhead network construction
-
Telecom pole line hardware systems
-
Utility pole and cross-arm cable fixing
-
Mid-span and terminal anchoring points
Product Features:
-
Tool-free installation, quick and efficient operation
-
Self-adjusting wedge structure for reliable gripping force
-
Stainless steel bail for strong mechanical attachment
-
No damage to cable jacket during installation
-
Open bail design for faster installation on poles
-
Anti-drop-off safety design for secure operation
-
Excellent UV resistance and environmental durability
-
Extended clamp body for improved cable stress distribution
Technical specification
|
Product code
|
Cable diameter, mm
|
MBL, kN
|
|
PA-3000
|
8-12
|
8.0
|
Application
Application of ADSS Cable Tension Clamp PA-3000
The PA-3000 ADSS tension clamp is widely used in modern fiber optic cable aerial installation systems, especially in telecommunication and broadband network infrastructure projects.

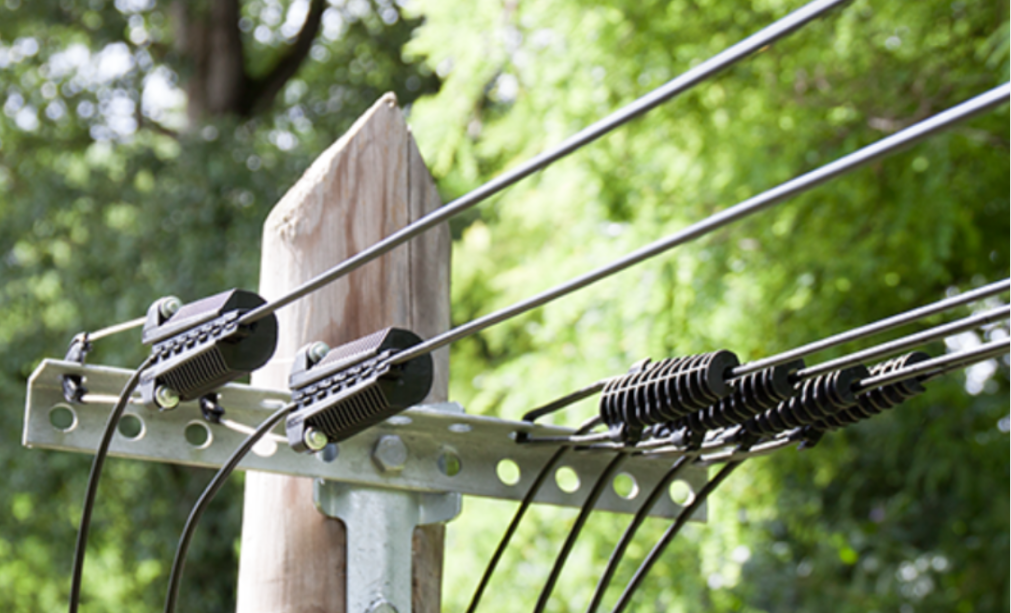

It is typically installed on:
-
Utility poles
-
Pole line cross-arms
-
Building-mounted brackets
-
Aerial fiber distribution networks
This wedge anchor clamp is used at:
-
Cable termination points
-
Angle and directional change points
-
Intermediate pole spans
-
Mid-span tensioning positions
It plays a critical role in maintaining proper ADSS cable tension, reducing sagging, and ensuring stable optical signal transmission performance in outdoor environments.
Why Choose PA-3000 ADSS Tension Clamp?
The PA-3000 is engineered for high mechanical strength, long-term outdoor durability, and easy installation efficiency. It is an essential component in modern fiber optic pole line hardware systems, helping operators reduce installation time while improving network reliability.
Manufactured with UV-resistant and corrosion-resistant materials, the clamp ensures stable performance under extreme weather conditions such as strong sunlight, heavy rain, wind load, and temperature variation.
Test
Ultimate tensile strength test
The ultimate tensile strength test is a mechanical performance test used to evaluate the maximum load a product can withstand before deformation or failure.
During the test, a controlled pulling force is applied to the product from both ends until it reaches its breaking point. This test provides important performance data such as elongation, yield strength, and ultimate load capacity.
Jera conducts tensile strength tests on the following products:
Our internal laboratory is capable to proceed such a series of standard related type tests.
