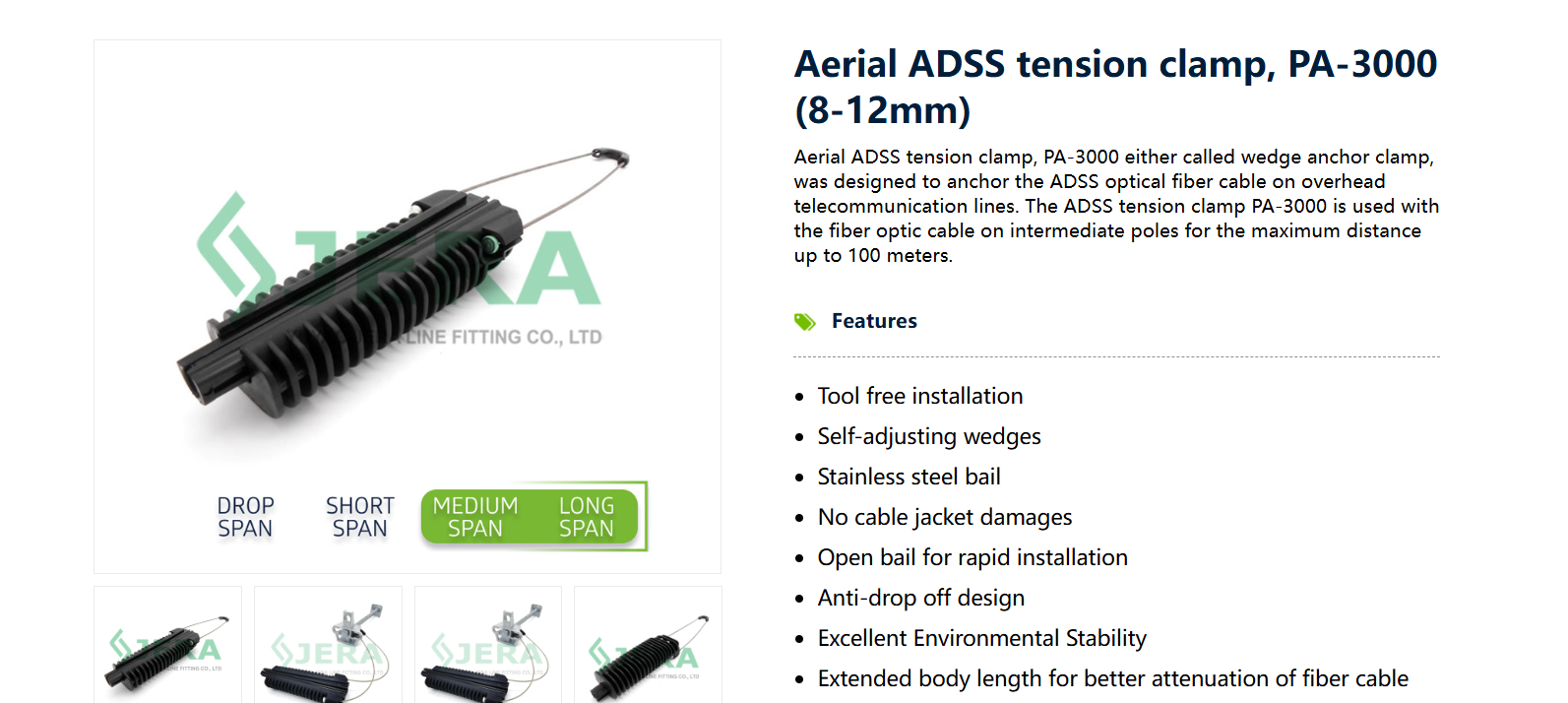

PA-3000: A Smart Choice for Aerial ADSS Optical Cable Tension Clamps
Jera Line is a specialized manufacturer of cable infrastructure products, exclusively engineered for outdoor applications.
The video you are watching demonstrates the assembly process of our aerial ADSS tension clamp – the PA-3000, also known as a wedge anchor clamp. This clamp is designed to anchor ADSS optical fiber cables on overhead telecommunication lines. The PA-3000 ADSS tension clamp is used with fiber optic cables on intermediate poles, supporting maximum distances of up to 100 meters.
For additional details, please do not hesitate to contact us via
Email: info@jera-fiber.com
Youtube:https://www.youtube.com/@jeraline
Product Features:
-
Tool free installation
-
Self-adjusting wedges
-
Stainless steel bail
-
No cable jacket damages
-
Open bail for rapid installation
-
Anti-drop off design
-
Excellent Environmental Stability
-
Extended body length for better attenuation of fiber cable
Technical specification
|
Product code
|
Cable diameter, mm
|
MBL, kN
|
|
PA-3000
|
8-12
|
8.0
|
Application
Applied outdoors, it is used on telecommunication supports, between buildings and industrial structures to secure and protect optical cables.
Test
Ultimate tensile strength test
Ultimate tensile strength test other called maximal mechanical tensile test which used to measure the ability to withhold mechanical loads of products.
This is a mechanical test where a pulling force is applied to a material from both sides until the sample changes its shape or breaks. It's is a common and important test that provides a variety of information about the material being tested, including the elongation, yield point, tensile strength, and ultimate strength of the material.
Jera proceed this test on below products
-
Pole line suspension clamps
-
Preformed guy grips
-
ADSS strain dead ends
-
Stainless steel bands
-
FTTH drop clamps
-
Strain clamps
Endurance test on failure tension testing equipment under mechanical and thermal stresses with oscillation stress has different values according to standard IEC 61284 for overhead fiber optic cable, and accessories.
We use following standards test on new products before launching, also for the daily production, in order to make sure ours customer could receive products which meet quality requirements.
Our internal laboratory is capable to proceed such a series of standard related type tests.
Welcome to contact us for further information.
