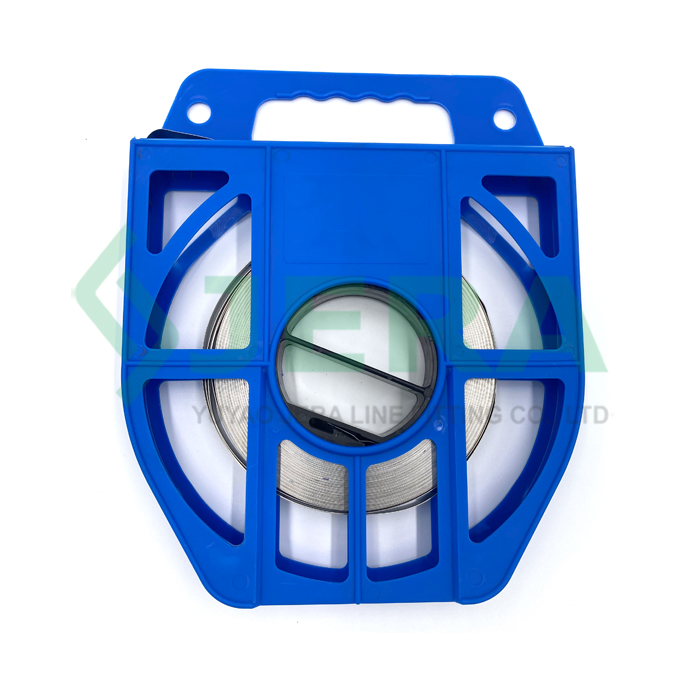

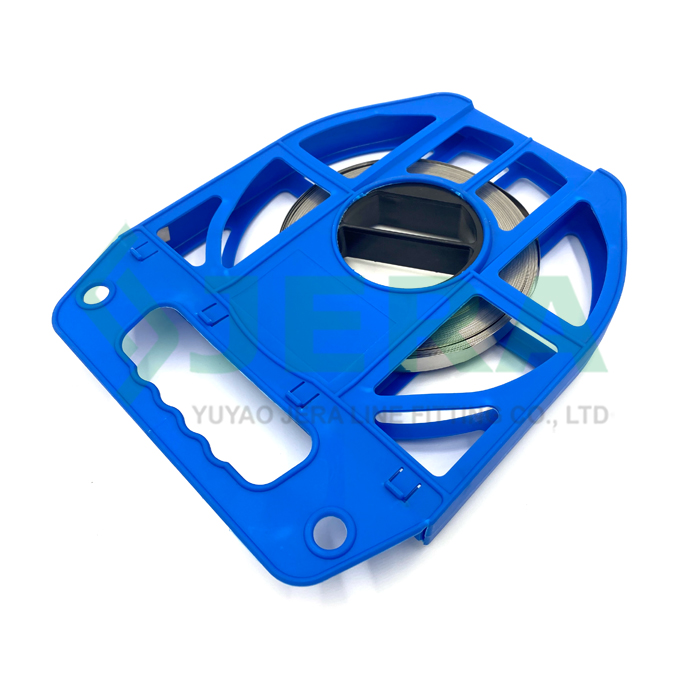

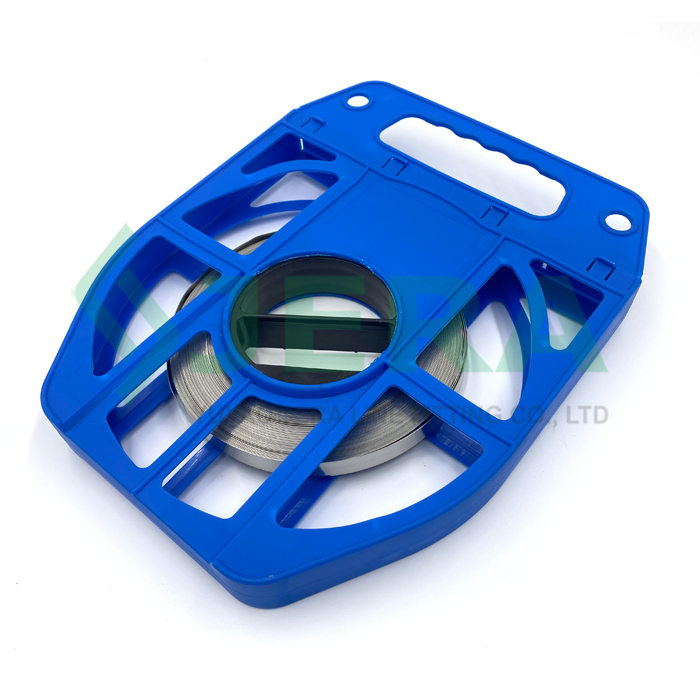

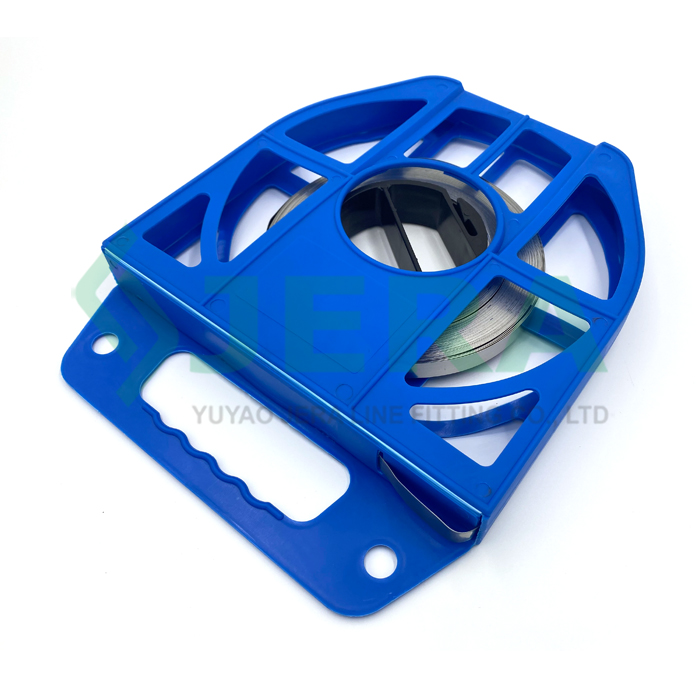

3/8” Stainless steel bands 304

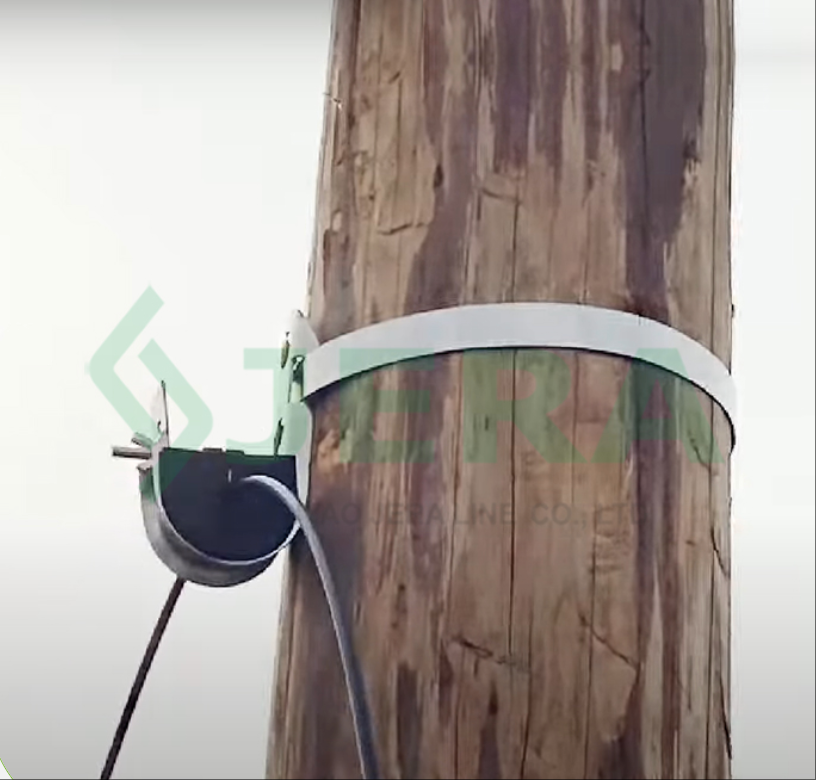

Stainless steel straps, other called stainless steel tie band is a kind of tie used for fixing or attaching industrial fitting on pole, are widely used in the constructions of passive optical networks or electrical fastening solutions.

Features

Width: 9.5 mm -3/8”
Thickness: 0.5 mm- 0.02”
Length: 30 or 50 m
Material grade: 304

DESCRIPTION Specification Test

REVIEW

Jera line is a professional factory who produce fiber optic cable and relevant components for aerial ftth deployments. We manufacture stainless steel buckle , banding tools which are applied with this stainless steel tie to attach or fasten anchor bracket, suspension fitting on pole during ftth line constructions.

All the jera produced products are inspected by a series tests, such as corrosion resistant test, mechanical tensile test, UV resistant test and etc. These tests make us have more confident in our products and a better quality control.

Technical specification

Material grade,SUS	304
Width,mm	3/8 ” -9.5
Thickness,mm	0.020 ” -0.50
Length for roll, m	30 or 50

Test

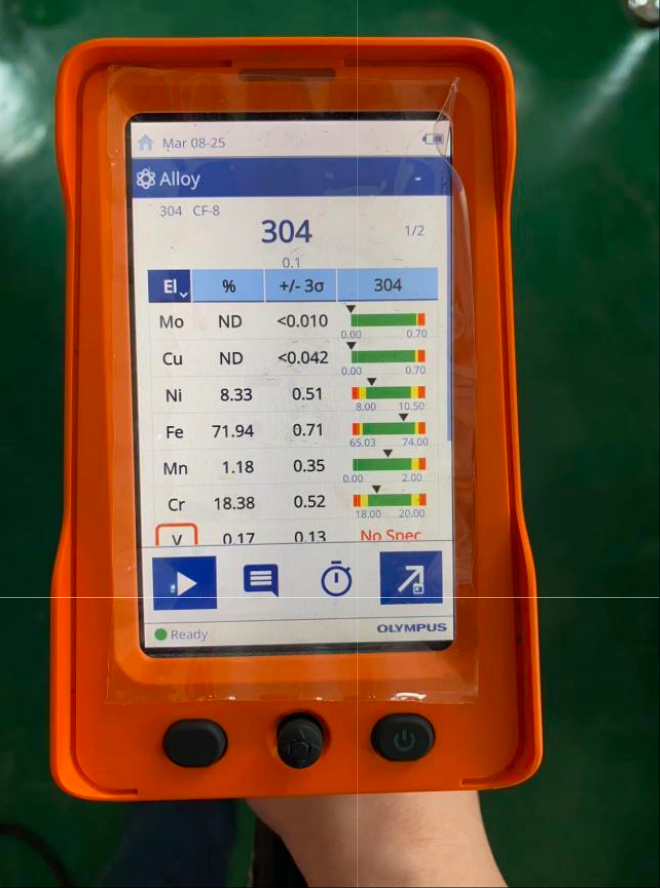

1. Jera's Lab use the XRF machine to check the primary alloying elements of the stainless steel.

These elements are the core of stainless steel properties, with strict minimum/maximum limits to ensure consistency.

Especially the Nickel (Ni) content percentage.

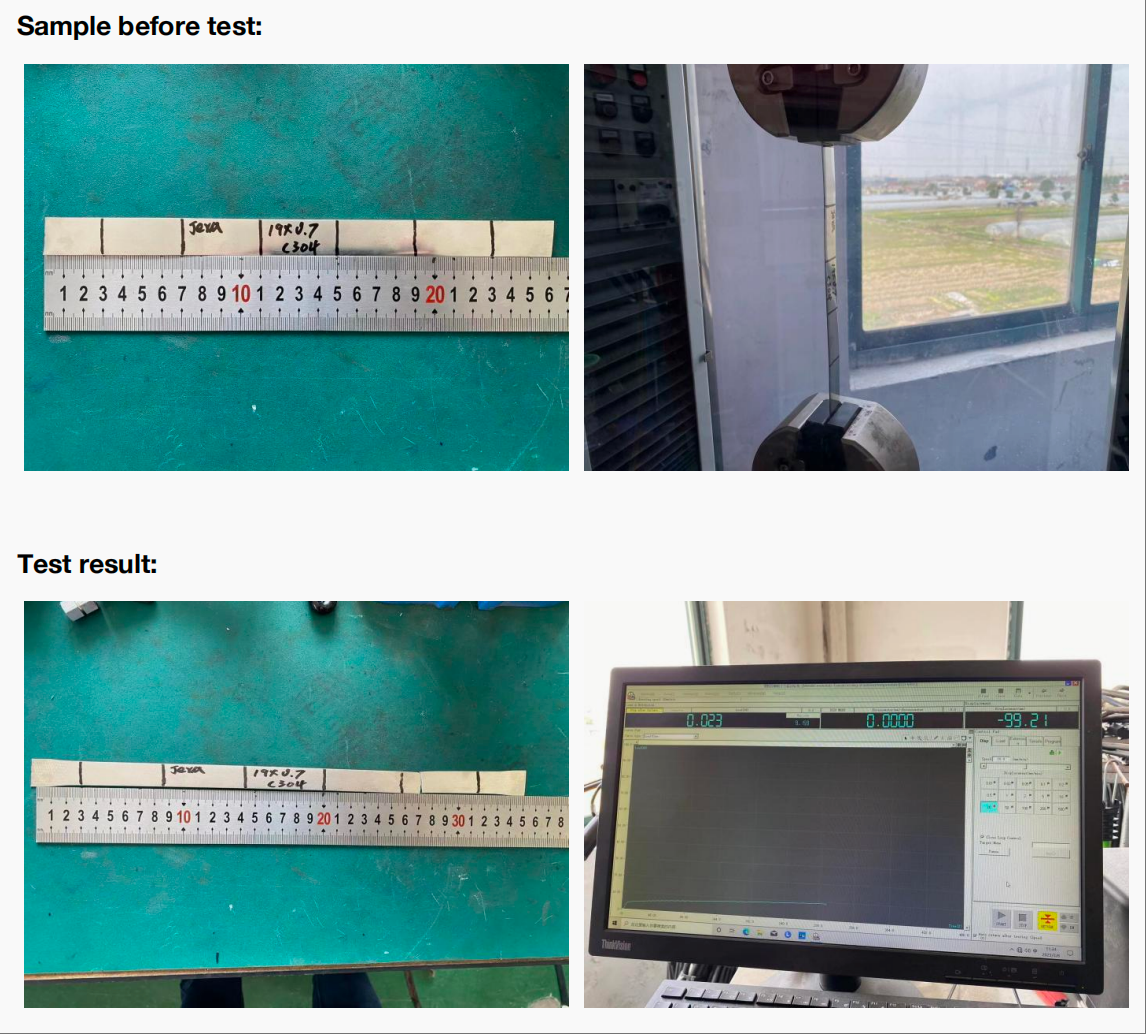

2. Tensile strength and elongation test according to IEC 61284-1997
