1core Double Jacket Outdoor Drop Cable LSZH Black
FOC-R+R-LSZH(WC)+5*1100PF+0.9*PVC
Description:
Fiber optic drop cable also called double sheath fiber drop cable is an assembly designed to transfer information by light signal in last mile internet constructions.
Optic drop cables usually consist of one or more fiber cores, reinforced and protected by special materials to have superior physical performance to applied in various applications.
-
Application: Outdoor
- Fiber quantity: 1 fiber
- Dimensions: 4.6 mm
- Reinforcement: Aramid yarn
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
-
Double sheath protection
-
Inner cable with polyester strength member, high flexibility
-
UV resistant LSZH jacket
-
Both indoor and outdoor application
SPECIFICATION
The cable consists of:
- The cable dimensions:
- Diameter: 4.6 ± 0.1 mm
- Fiber quantity is 1 fiber.
- Aramid yarns
- LSZH double jacket sheath, UV protected.
Optical fiber of Single mode G.657A1/A2, G.652D or G657B3 grades of fiber standards.
The exact fiber core standard maybe chosen by customer. The optical fiber is color protected, according to TIA/EIA 598 or IEC 60304.
LSZH is a sheath material is halogen-free (no chlorine and fluorine). This material does not produce dense smoke and does not produce toxic gases when burned. The fire protection grade maybe chosen by the customer according to CPR, mentioned in EN 50575. The test maybe conducted according to IEC / EN 60332-1-1.
APPLICATION

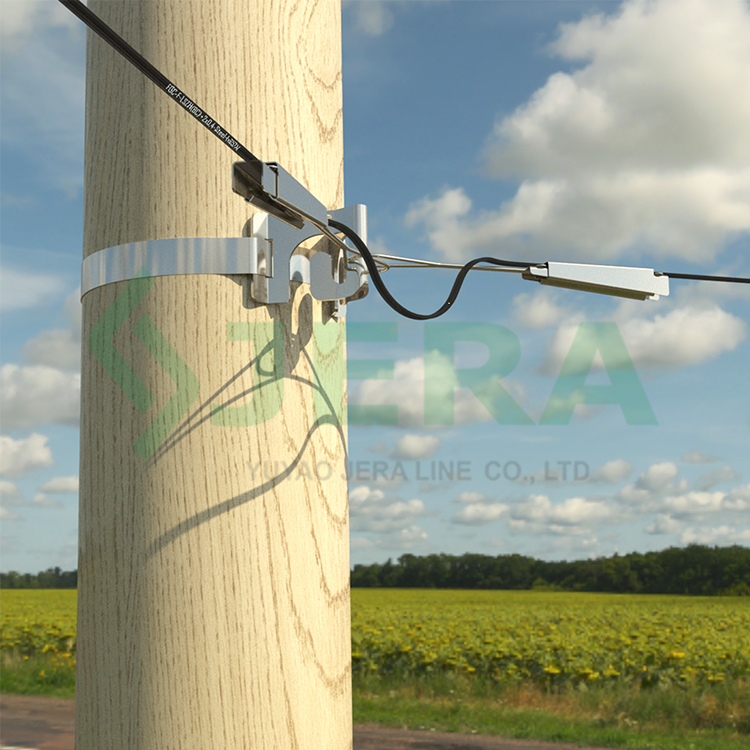

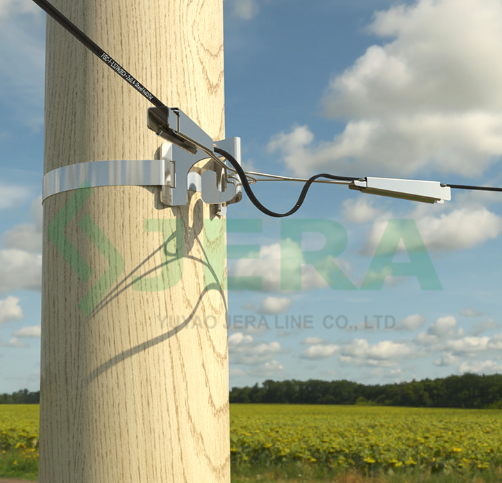

Applied outdoor, for installation on the telecommunication supports, between the buildings and industrial constructions.
Applied indoor, for cable tray distribution networks of fiber optics. It is allowed to lay cable on the outdoor.
Manufacturing
Watch Our Factory Video
Technical specification
|
Items |
Parameters |
|
Product code |
FOC-R+R-LSZH(WC)+5*1100PF+0.9*PVC-1xG657A2-2.8 < LSZH-(BD)+11*1100PF+RC-4.6-1000 m |
|
Product name |
FTTH double sheath round drop cable, 1 fiber |
|
Strength member details |
PF polyester strength members |
|
Inner sheath material |
LSZH |
|
Inner cable size,mm |
2.8 (±0.1） |
|
Outer sheath details |
0.7mm(±0.1）LSZH |
|
Cable diameter,mm |
4.6mm(±0.1） |
|
Cable weight kg/km |
19 |
|
Attenuation coefficient (dB/km) |
1210nm–0.35 |
|
1550nm–0.25 |
|
|
Allowable tensile strength(N) |
200 to 300 |
|
Min.bending radius(mm) |
Without tension–20D |
|
Under maximum tension–40D |
|
|
Temperature range(℃) |
Installation -10~+50 |
|
Transport & storage -20~+50 |
|
|
Operation -20~+50 |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
TESTING FACILITY

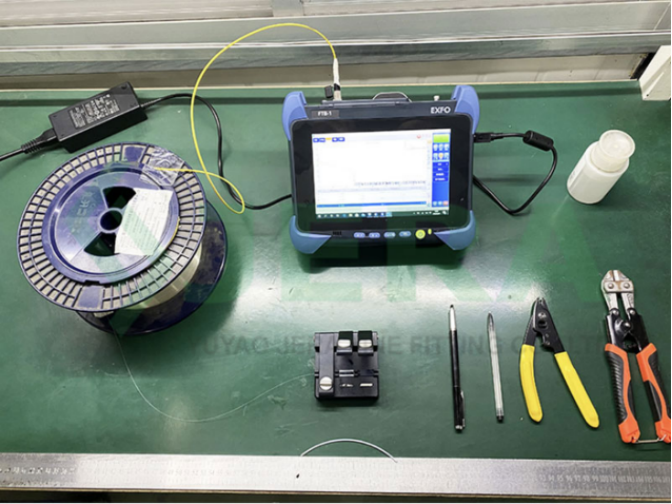

Cable OTDR
test
Tensile strength
test
Temp & Humi cycling
test
UV & temperature
test
Corrozion aging
test
Fire resistance
test
