1x4 LC-APC fiber optic PLC splitter

1×4 LC-APC fiber optic PLC splitter

1x4 LC-APC fiber optic PLC splitter

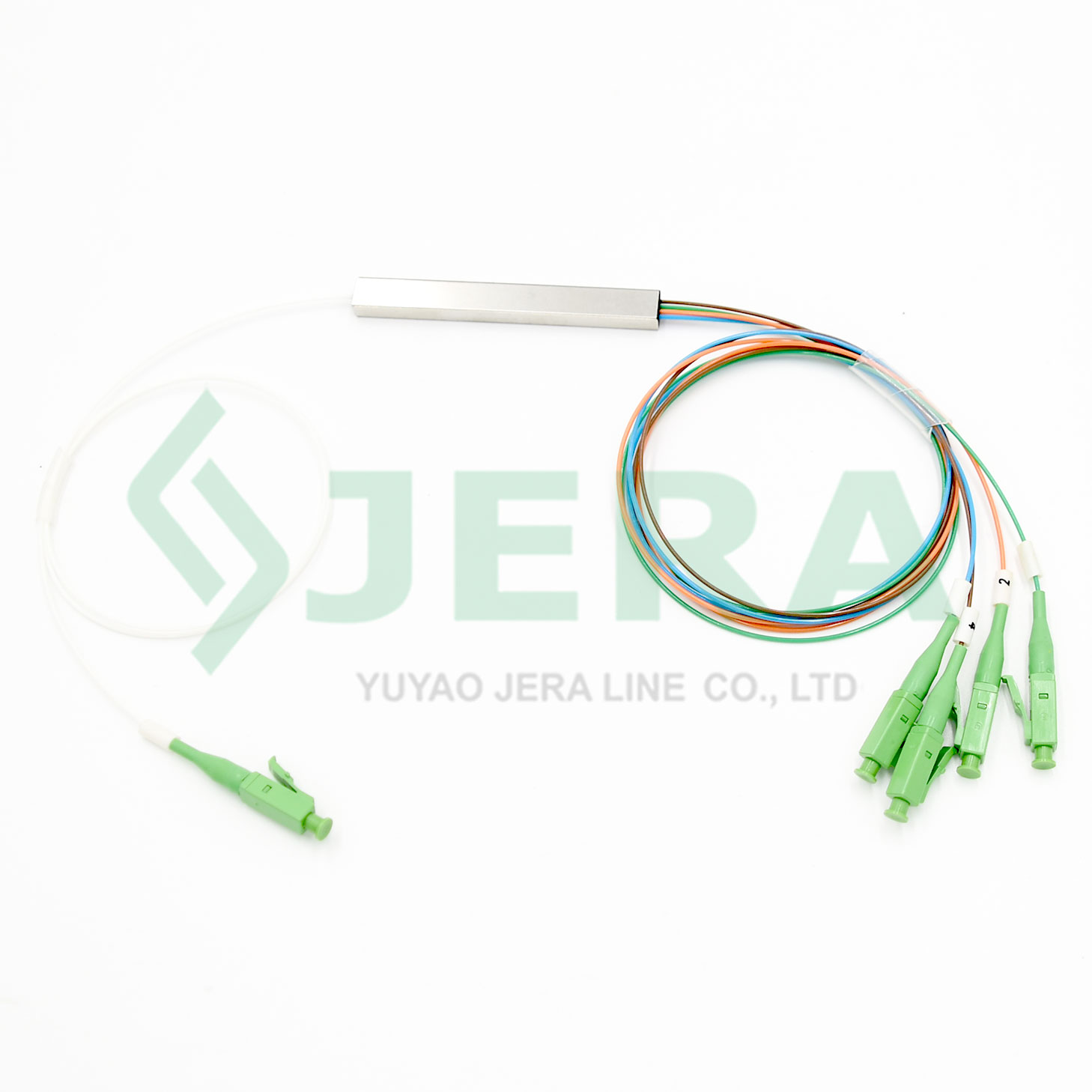

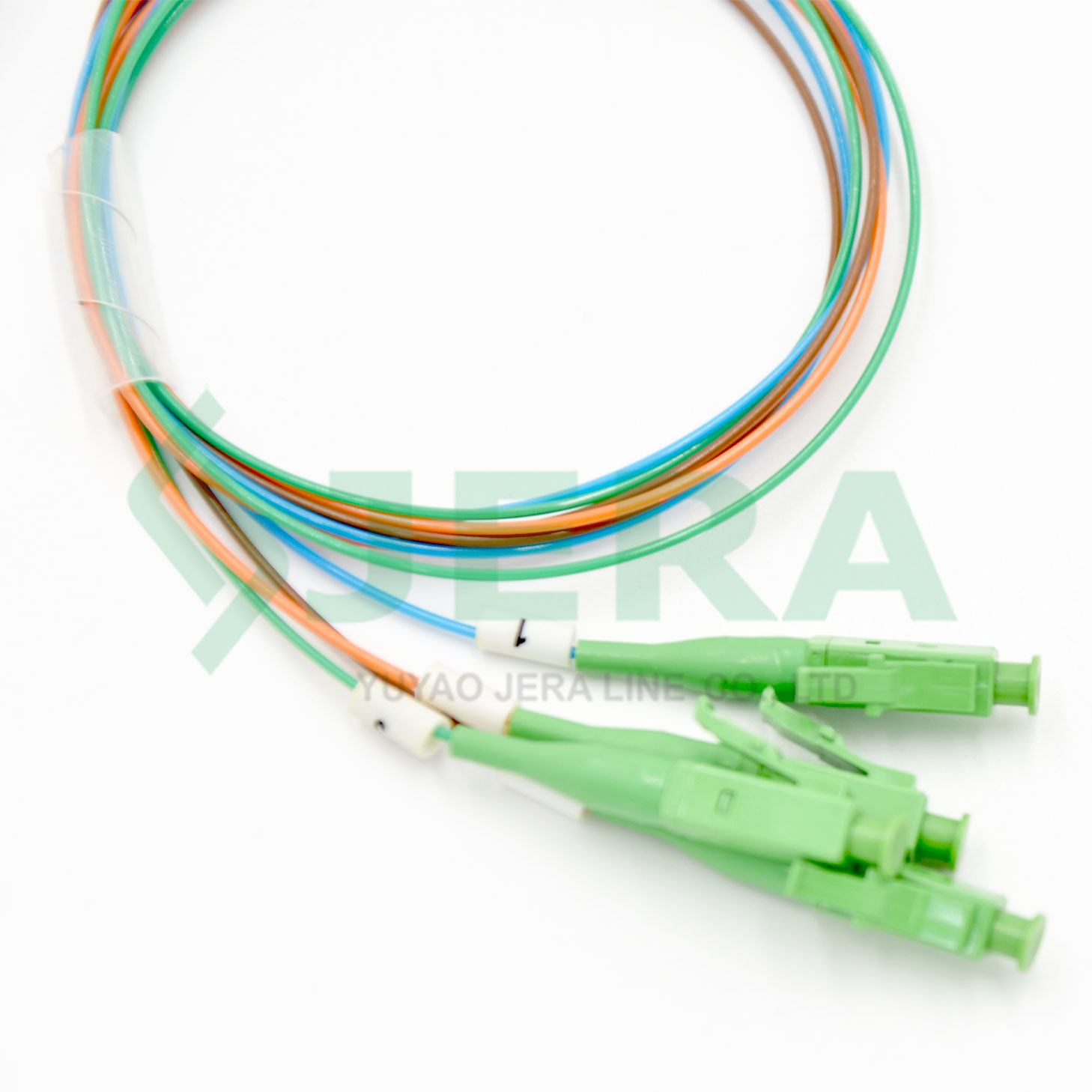

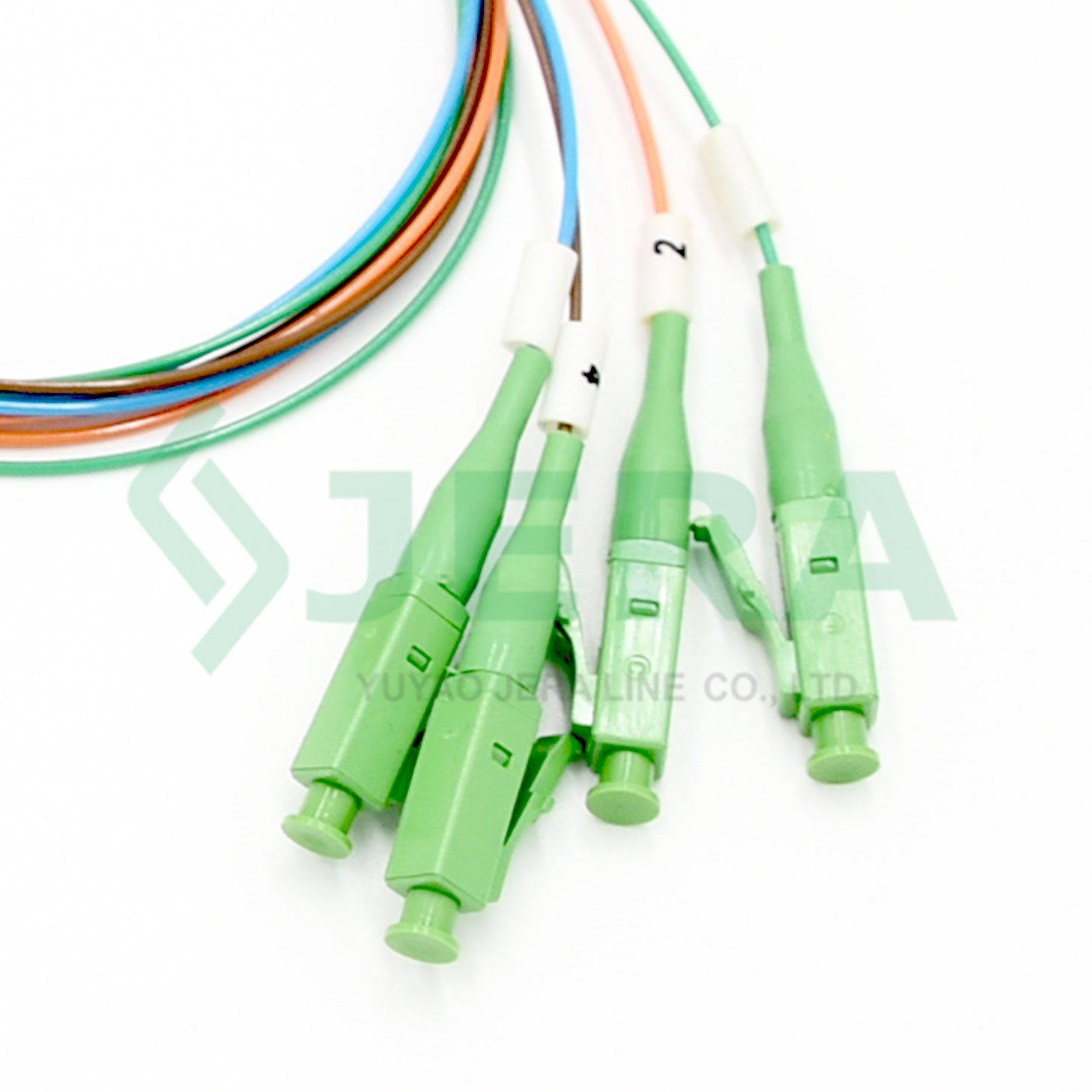

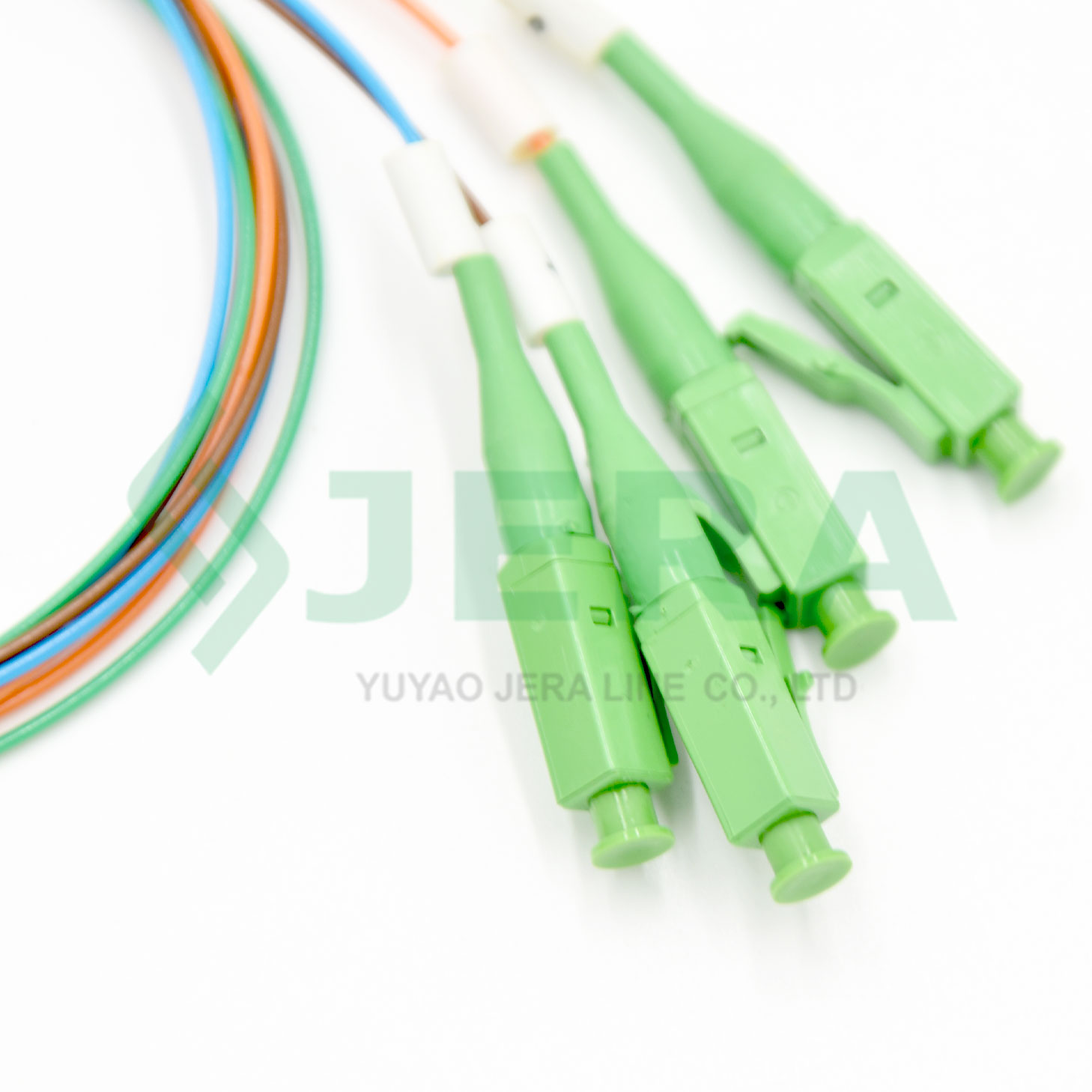

1×4 LC-APC fiber optic PLC splitter also known as fiber optic cable splitter, is a splitter with one input fiber port and four output fiber ports. The input optical signal will be evenly divided into four parts, and each part will be output to an output port.

Features

Type：1×4
Adapter type: LC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Standard sizes and mounting hole positions, easy to operate
Plastic casing to protect the optical fiber inside
Compact construction and bend-resistant fiber optic cable
G.657A1 optical cable
Nano zirconia ceramic plug
Optical signal is evenly distributed
Meet RoHS standard
competitive price and low cost

The PLC optical splitter is a passiv optical device manufactured using optical waveguide chip technology. They are usually made of silicon or silicon oxide substrates and use the wiring of optical waveguide chips to achieve the distribution of optical signals. PLC optical splitters have many advantages, such as wider operating frequency band, lower insertion loss, higher spectral accuracy and good temperature stability. This makes them one of the most commonly used types of optical splitters in fiber optic networks.

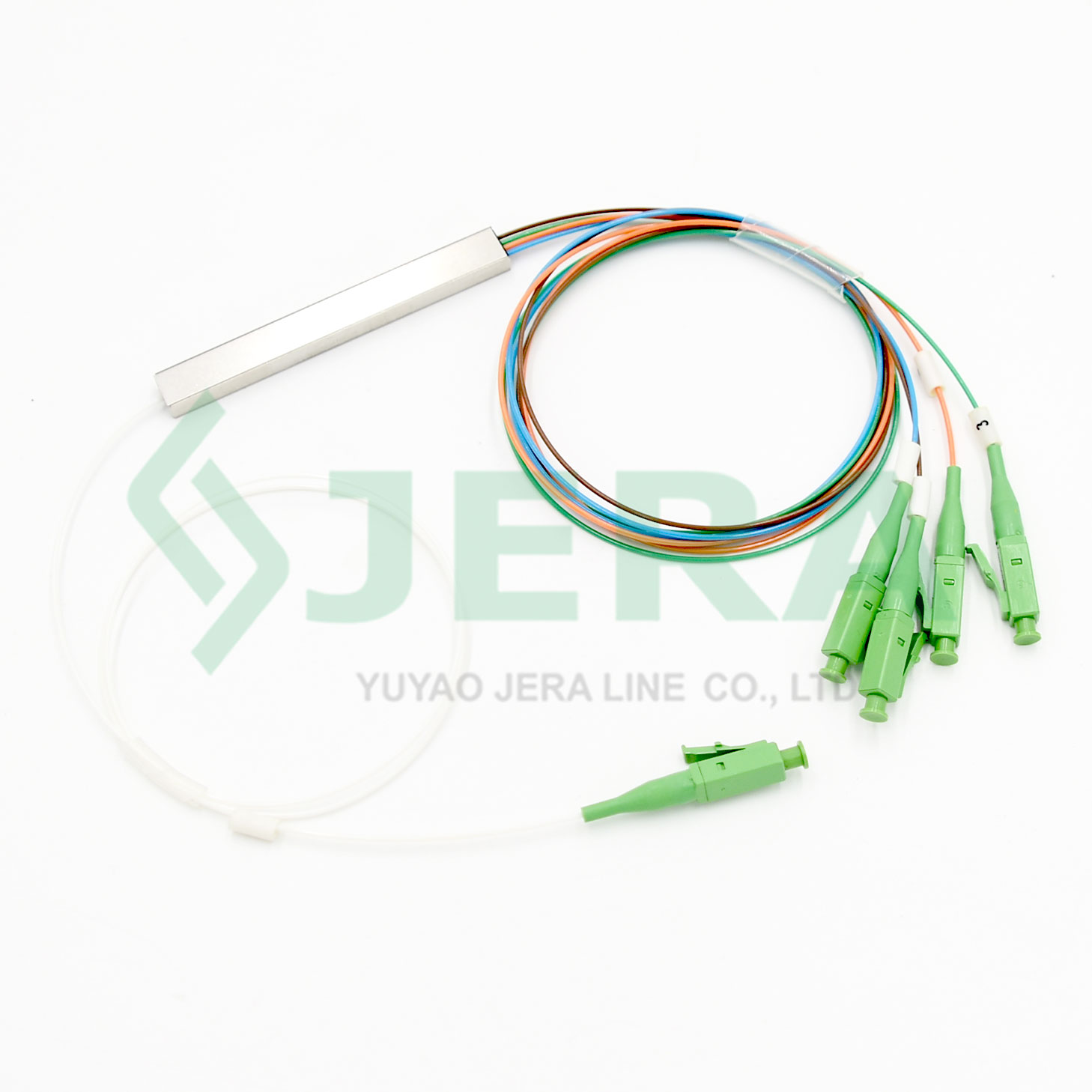

The Blockless Fiber PLC Splitter is more convenient than the traditional ABS box-type Fiber PLC Splitter. Please choose according to your needs.

read more

Applied in passive optical networks (EPON, GPON, BPON, etc.) to evenly distribute one or more input optical signals to multiple output optical signals.

read more

Manufacturing

Watch Our Factory Video

Technical specification

type	1×4
P/N	PLC-1×4-1260-1650nm
Fiber Grade	G.657A1
Fiber length(m)	≥1
Connector Type	LC/APC
Steel Tube/Case size(mm)	60×7×4
Insertion Loss（dB）	≤10.5
Return Loss	≥ 55dB
Uniformity（dB）	≤0.6
Input/Output Fiber Diameter	900μm
