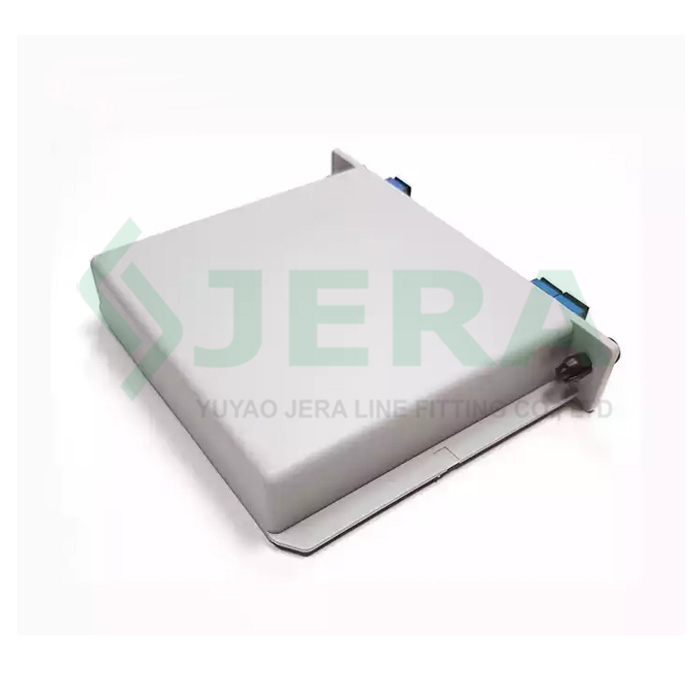

SC/UPC 1×2 fiber optic cassette splitter

1×2 SC/UPC

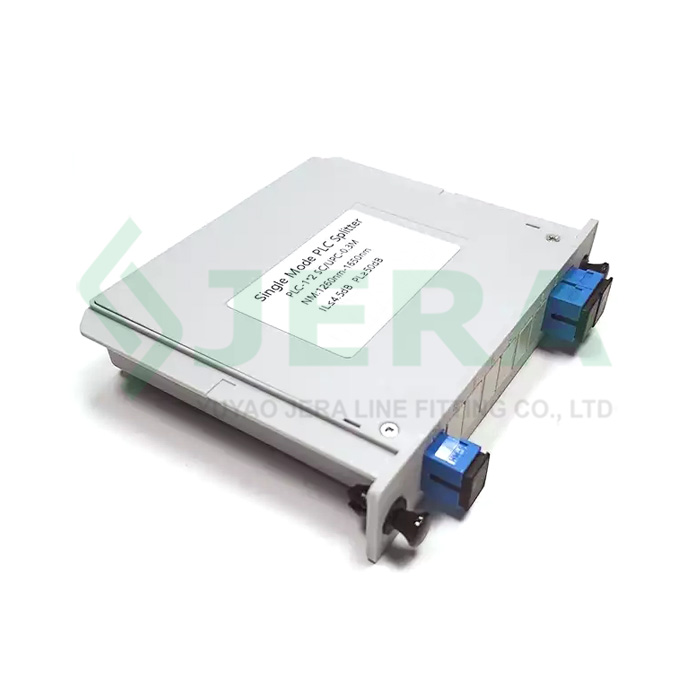

SC/UPC 1×2 fiber optic cassette splitter as known as LGX box PLC splitter, designed to distribute optical signals during FTTH network construction. It’s based on planar light-wave circuit technology and provides a low cost and easy way to optical fiber management.

Features

Type: 1×2
Adapter type: SC
Polish type: UPC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Low insertion loss(IL)
Low polarization dependent loss (PDL)
Wide operating wavelength: 1260-1650nm
Compact design with adapters or pigtails with SC/UPC application
Common size, suitable for most fiber boxes in market
Telcordia GR-1209-CORE & GR-1221-CORE standard
Fibers secured by ABS plastic case
Competitive price

SC/UPC 1×2 fiber optic cassette splitter as known as LGX box PLC splitter, designed to distribute optical signals during FTTH network construction. It’s based on planar light-wave circuit technology and provides a low cost and easy way to optical fiber management.

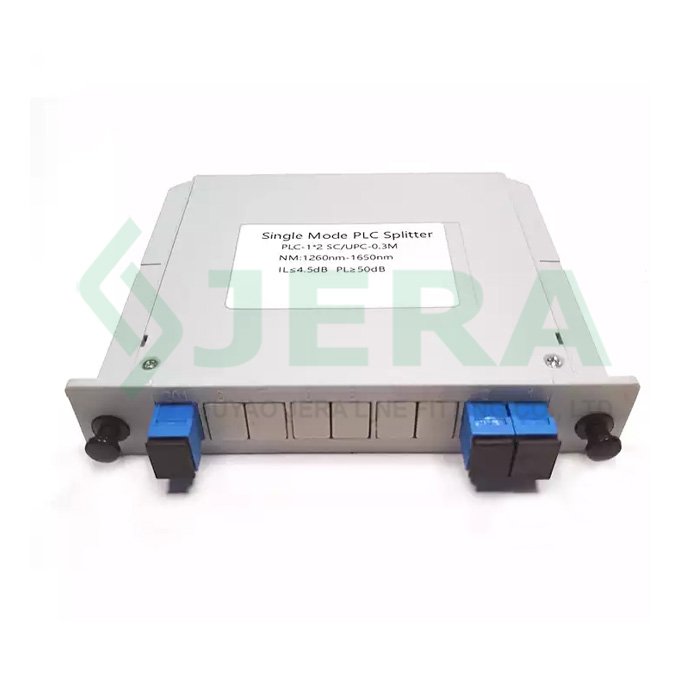

Fiber optic card type PLC Splitter are based on a quartz integrated wave guide optical light distribution device. The interface type is SC/UPC, fast and practical.

read more

Jera SC/UPC cassette PLC splitter has compact structure and good stability, and can be installed in various existing transfer boxes without leaving a lot of installation space. Jera line is operating according to ISO 9001:2015, we proceed essential fiber reflect test before sending out to ensure every fiber optical PLC splitter will meet clients’ requirement and industry standard.

Jera line is a direct factory of fiber optical cable and related accessories for FTTH constructions. We produce such as drop cable clamps, ADSS cable clamps, cable bracket, **fiber optic termination boxes** , adapters, patch cord and so on.

Welcome to contact us for more information about this fiber optic cassette splitter price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×2
Head types		SC/UPC
Operating wavelength (nm)		1260-1650
Cassette splitter dimensions, mm		12810025
Splitter cassette material		ABS
Optical fiber type		G652D, G657A1,G657A2
Insertion loss(dB)	Typical	10.5
Insertion loss(dB)	Maximum	10.7
Uniformity(dB)	Typical	0.6
Uniformity(dB)	Maximum	0.8
Polarization Dependent Loss(dB)	Typical	0.15
Polarization Dependent Loss(dB)	Maximum	0.25
Wavelength dependent Loss(dB)	Typical	0.15
Wavelength dependent Loss(dB)	Maximum	0.3
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40-85
Optical fiber length (m)		0.5, 1.0, 1.5
