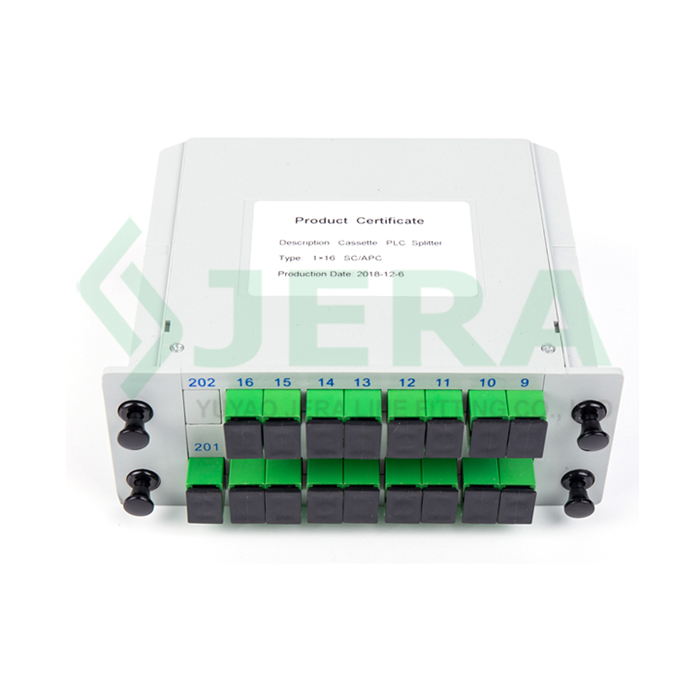

Plug-in type PLC splitter 1×16 SC/APC

1×16 SC/APC

Plug-in type PLC splictter also called LGX PLC splitter used to distribute or combine optical signals in FTTH deployment. It’s usually installed in the wall mount Fiber optic distribution box to save time & space and provides reliable protection for the fiber optic cores.

Features

Type: 1×16
Adapter type: SC
Polish type: APC
Area: Indoor

DESCRIPTION Specification Test

REVIEW

Key Features

Compact size design
Low insertion loss and PDL
Wide operating wavelength: 1260-1650nm
Full Telcordia GR-1209/1221 qualifications
Easy and low cost FTTH installation
Fibers secured by ABS plastic case
High reliability and stability
Competitive price

Plug-in type PLC splictter also called LGX PLC splitter used to distribute or combine optical signals in FTTH deployment. It’s usually installed in the wall mount Fiber optic distribution box to save time & space and provides reliable protection for the fiber optic cores.

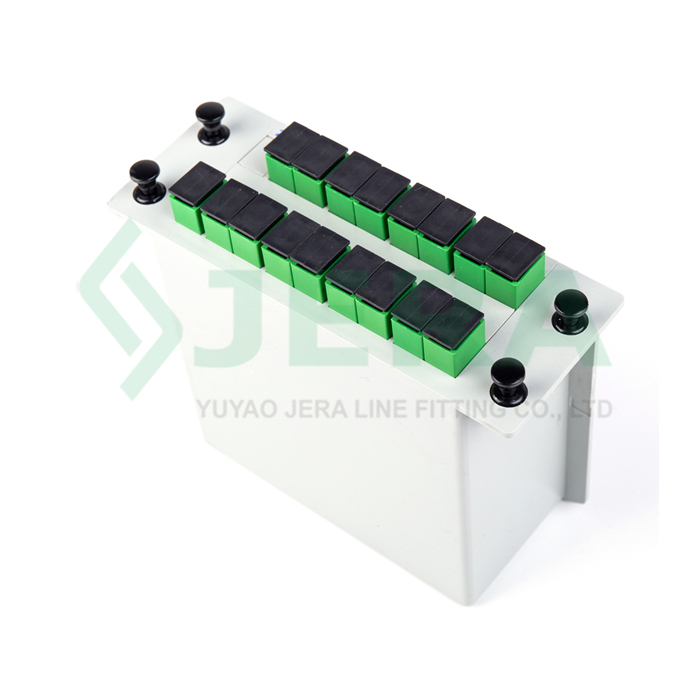

1×16 SC/APC PLC Splitters are based on a quartz integrated wave guide optical light distribution device. The interface type is SC/APC, fast and practical. Applicable to home wiring, engineering projects, corporate companies, fiber optic LAN.

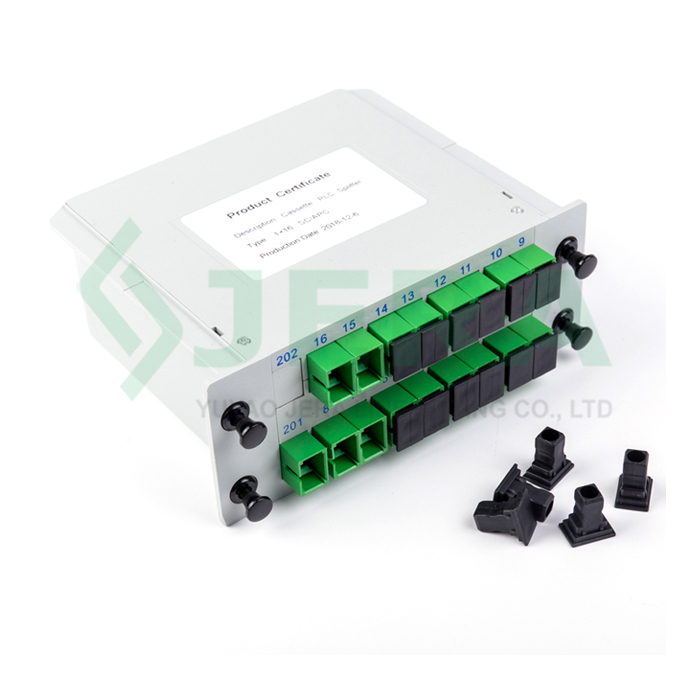

PLC optical splitter offers uniform power splitting with low insertion loss, low PDL and high return loss. User can customize the optical splitting ratio for every output channel.

read more

Jera Line has an on-site laboratory, which performs essential tests, in accordance with European quality inspection standards.

Jera line is a direct factory of fiber optic cables and related accessories such as **drop cable patchcords** , drop wire clamps, ADSS clamps, fiber optic termination boxes, fiber optic splice closures, pole bandings, dead end guy grips etc.

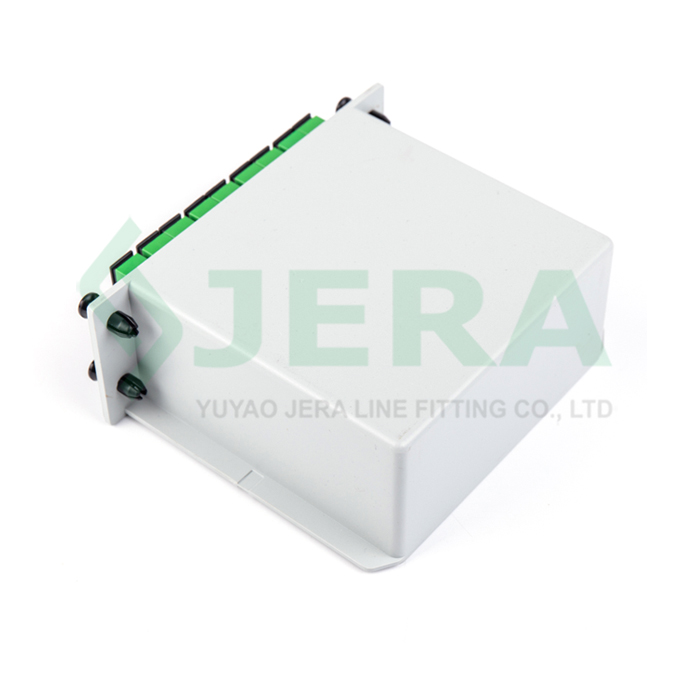

Welcome to contact us for further details about this Plug-in type PLC splitter price.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Type		1×16
Operating wavelength (nm)		1260-1650
Cassette splitter dimensions, mm		12810050
Splitter cassette material		ABS
Optical fiber type		G652D, G657A1,G657A2
Insertion loss(dB)	Typical	13.5
Insertion loss(dB)	Maximum	13.8
Uniformity(dB)	Typical	1
Uniformity(dB)	Maximum	1.2
Polarization Dependent Loss(dB)	Typical	0.2
Polarization Dependent Loss(dB)	Maximum	0.3
Wavelength dependent Loss(dB)	Typical	0.3
Wavelength dependent Loss(dB)	Maximum	0.5
Return loss(dB)	Maximum	55/50
Directivity(dB)	Maximum	55
Operating temperature ℃		-20 to 85
Storage temperature ℃		-40-85
Optical fiber length (m)		0.5, 1.0, 1.5
