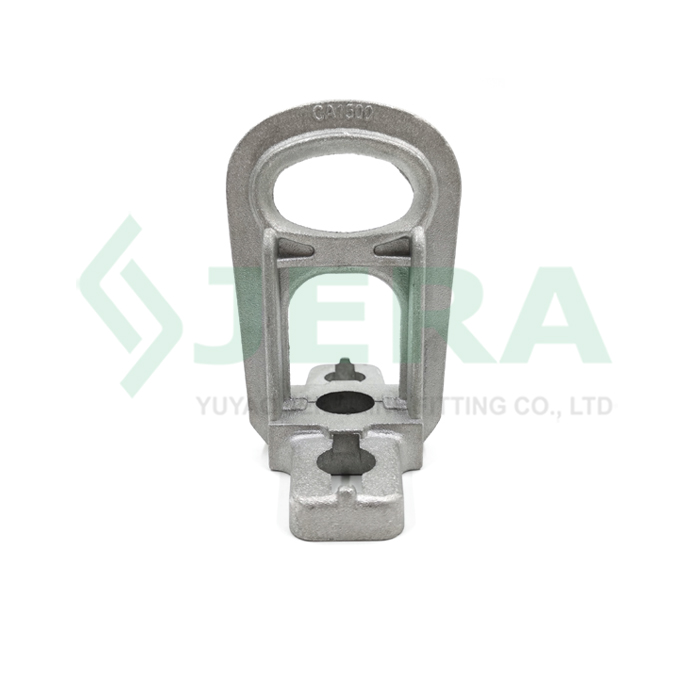

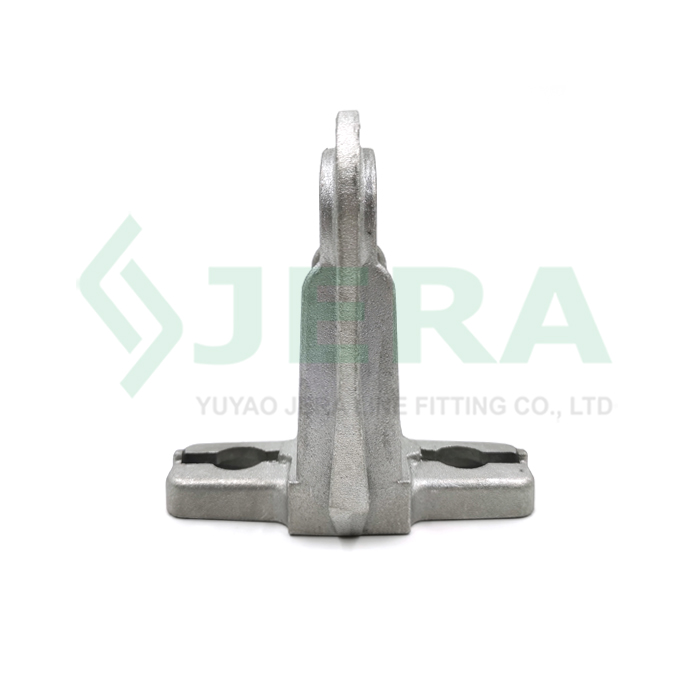

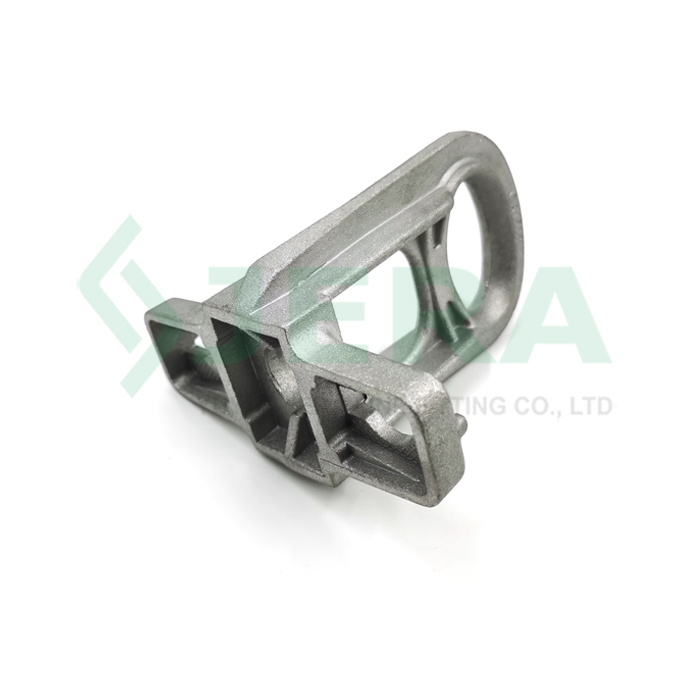

Aerial anchor bracket,CA-1500

CA-1500

Aerial anchor bracket CA-1500, other called anchoring bracket is designed to tension ADSS cable clamps or figure 8 tension clamps during outdoor aerial telecommunication network constructions.

Features

Bracket type: Tension
Application: Pole
Span: 70-200 meters
MBL: 15 KN

DESCRIPTION Specification Test

REVIEW

Key Features

Easy installation to save costs
Made of aluminum alloy, corrosion resistant and durable
Applied on wooden, metal or concrete poles
Both stainless steel bands or bolts installation
With high mechanical strengths
Perfect environment stability
Fair price

Aerial anchor bracket CA-1500, other called anchoring bracket is designed to tension ADSS cable clamps or figure 8 tension clamps during outdoor aerial telecommunication network constructions.

This anchoring bracket is made of high strength aluminum alloy, progressed by die casting production technology, which is available in jera line workshop. And due to the aluminum alloy material, this bracket is rust-proof with superior environmental stability.

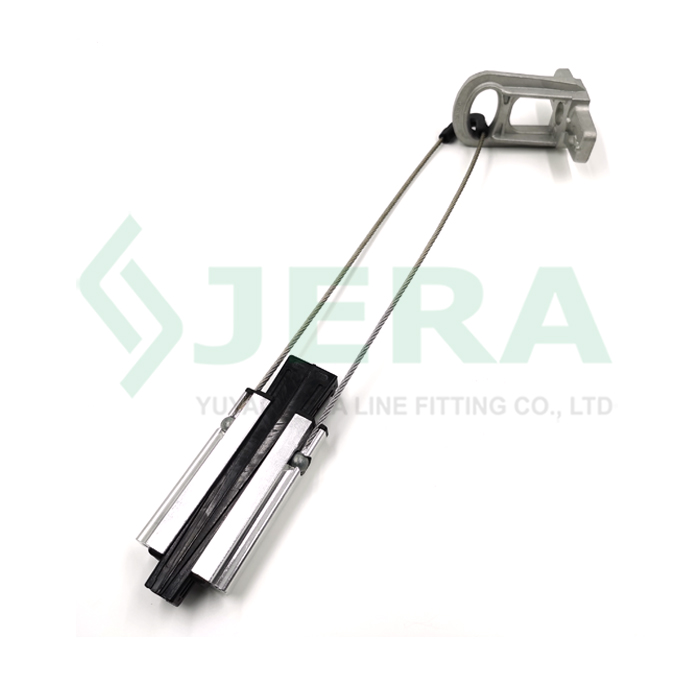

The aerial ADSS cable bracket CA-1500 is universal and has superior mechanical strengths which is allow it to be used with ADSS anchor clamps or LV ABC cable clamps with a long time service life. The installation of this FTTH bracket is very easy, it can be installed on poles by 14/16mm bolts or strap by 20mm width stainless steel bands, relevant accessories you could find in jera line product range.

read more

This ADSS cable suspension bracket inspected by variety of tests which are available in our internal laboratory, such as Temperature and humidity cycling test, Mechanical tensile strength test, Corrosion resistance test and etc. Through these tests, we could check the quality by ourselves and give guarantee to all our customers.

Jera line is a direct factory who produce fiber optic cable and related accessories for ftth aerial transmission line. We hope we can provide a whole solution for our customers. Please find more relevant product in our product group which related to overhead fttx deployments.

Please feel free to send inquiry for this aerial anchor bracket.

read more

Manufacturing

Watch Our Factory Video

Technical specification

Product code	MBL, kN	Weight. kg	Material
CA-1500	15	0.175	Aluminum alloy
