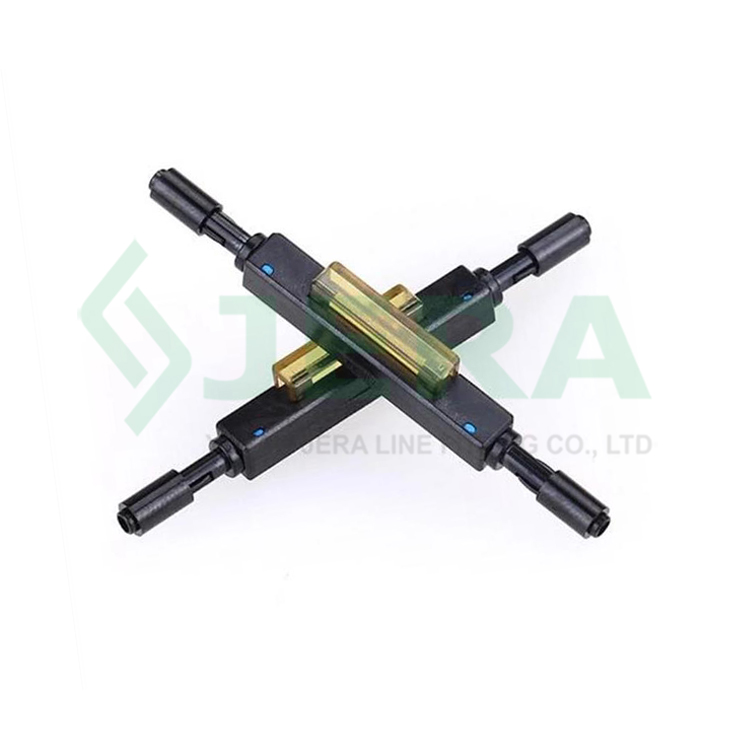

Optical Fiber Mechanical splice,MS-1
MS-1
Description:

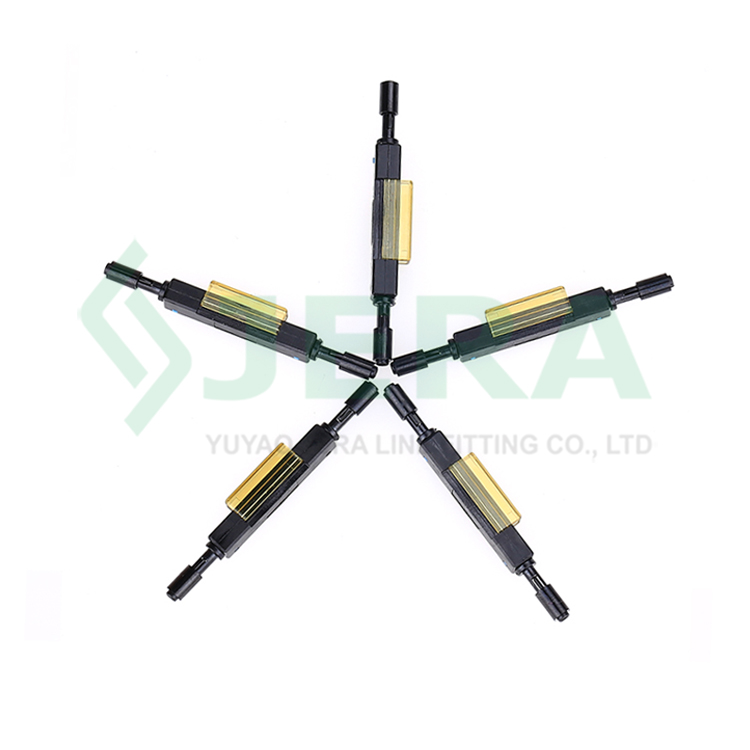

Fiber optic mechanical splice either called universal fiber mechanical splice is a mechanical fiber connector developed for optical fibers with a diameter of primary protection from 250 to 900μm.

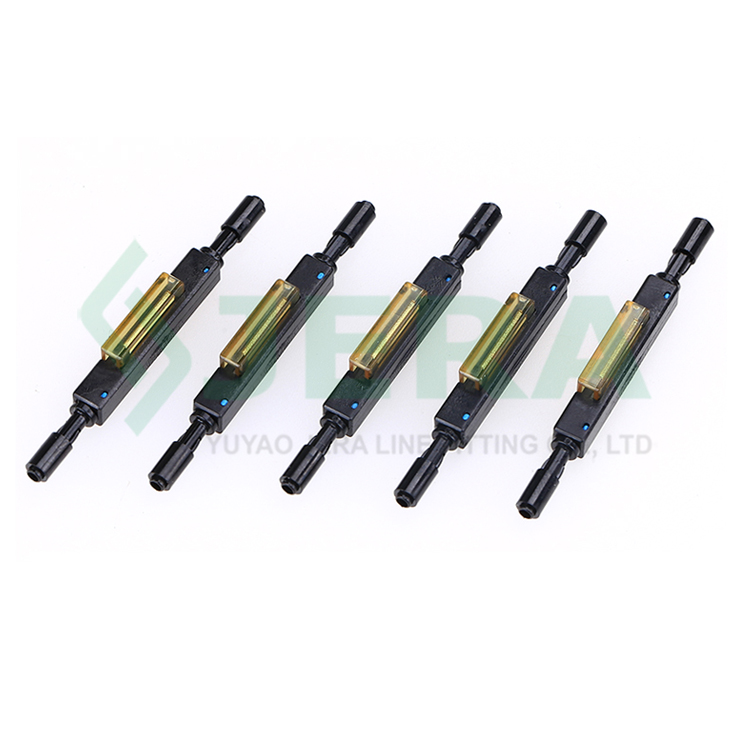

This fast mechanical splice allows quick ans stable connection of two optic fibers by simply pressing the loping lid with separate tools.
- Item number: MS-1
- Rang of application: Φ 0.25mm & 0.90mm optical fiber
- Fiber diameter: 125μm（657A & 657B）
- Tight cladding diameter: 250 & 900μm
- Applicable mode: Single-mode & multimode
- Telecommunication network
- Data communication net work
- LAN, WAN, GOPN deployments
- Fiber optic distribution frame, cabinet, OTB, ONU
- Emergency ftth line repairs
Applications:
- Product detail
- Specification
- Video
- Our Advantages
- Inquiry
Key Features
- Unique box type crimping technology
- High rate of success for installation and easy installation
- Intermittent fit connection technology to ensure signal transmission
- Integrated shell protection, can be long-term used outside
- Fiber aligned in v-groove for accurate alignment and low loss
- Applicable for optical fiber splicing and restoration for damaged lines
- Competitive price
SPECIFICATION
Fiber optic mechanical splice either called universal fiber mechanical splice is a mechanical fiber connector developed for optical fibers with a diameter of primary protection from 250 to 900μm.
This fast mechanical splice allows quick ans stable connection of two optic fibers by simply pressing the loping lid with separate tools.
APPLICATION

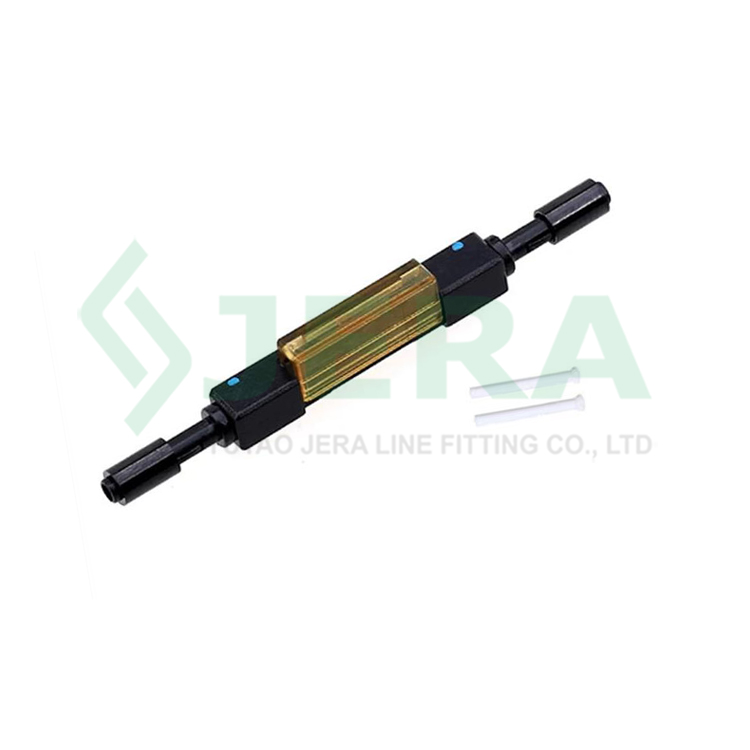

This drop cable splice butt an cheap and quick alternative way to connector two fibers. Using V-groove technology, this splice maintains physical contact between the fibers. It provide a precise, simple and low cost method of mechanically splicing optical fiber. Fiber can be spliced simply in this way in a very short time.
Jera is a direct factory who supply fiber optic drop cable and relevant accessories for aerial FTTH(Fiber to the home) deployments. We provide a whole set product to our clients, product including fiber optic cable, cable tension clamp, fiber optic terminal box, drop cable patch cord, adapters, fiber optic termination tools etc.

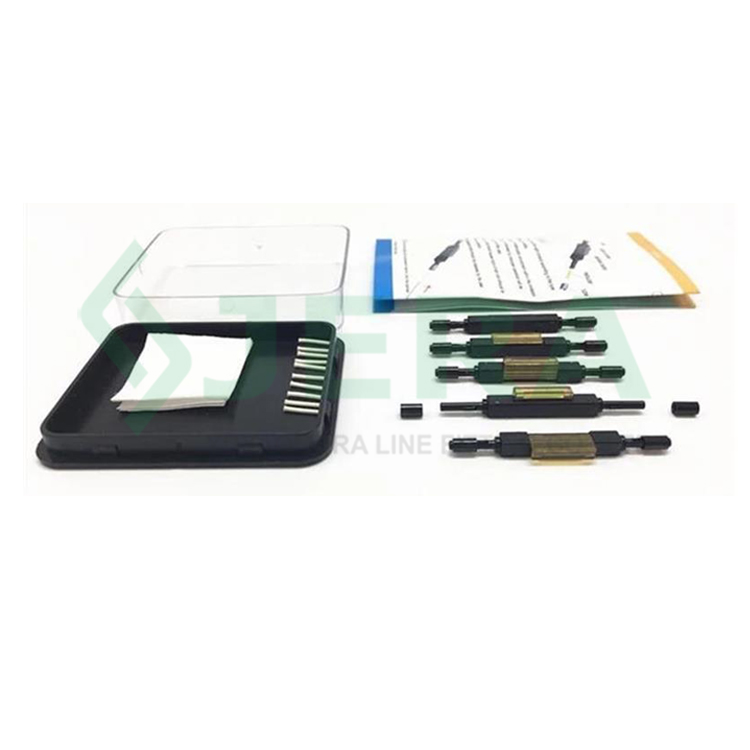

Feel free to contact us for more information about this ftth fiber fast connector.
Manufacturing
Watch Our Factory Video
Technical specification
| Item number |
MS-1 |
| Rang of application |
Φ 0.25mm & 0.90mm optical fiber |
| Fiber diameter |
125μm（657A & 657B） |
| Tight cladding diameter |
250 & 900μm |
| Applicable mode |
Single-mode & multimode |
| Size |
45*4.2*4.7mm |
| Insertion loss |
≤0.10dB |
| Return loss |
≤40dB |
| Bare fiber binding force |
＞5N |
| Tight cladding clamping force |
＞8N |
| Operation temperature |
-40~+75℃ |
| Repeated use(10 times) |
IL≤0.2dB RL≤5dB |
Product Video
FACTORY VIDEO
Factory picture
PRODUCTION FACILITY
Fiber optic cable workshop
Plastic molding workshop
CNC metals workshop
Press forming workshop
Plastic molding workshop
Pre connectorization workshop
TESTING FACILITY
Cable OTDR test
Tensile strength test
Temp & Humi cycling test
UV & temperature test
Corrozion aging test
Fire resistance test
